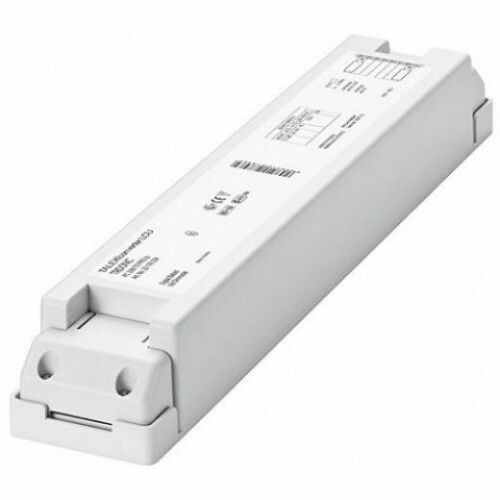

LCU 100/24 E 020 24166328 Tridonic 100W 24V

Product description • Constant voltage LED control gear • Universal input voltage range • Constant output voltage • Nominal life-time up to 50,000 h (at ta 40 °C with a failure rate max. 0.2 % per 1,000 h) • 5-year guarantee • 24 V LED control gear: suitable for emergency installations according to EN 50172 • Complies with CLASS C from minimum to maximum load range according to EN 61000-3-2 Properties • High efficiency • Low power loss • Overtemperature and overload protection • Short-circuit shutdown feature with automatic restart • Protection class II, SELV • Type of protection IP20 • Plastic casing white Technical data Rated supply voltage 120 – 240 V Input voltage, AC 108 – 264 V Input voltage, DC1 120 – 288 V Rated current (at 230 V 50 Hz) 0.54 A Mains frequency1 0 / 50 / 60 Hz Efficiency > 85 % λ (at 230 V 50 Hz) 0.95 Output voltage tolerance + 10 % Output power 100 W Output power range 10 – 100 W Turn on time (output) ≤ 0.5 s Turn off time (output) ≤ 1 s Hold on time at power failure (Output) 10 ms ta operating (at life-time 50,000 h) -25 ... +40 °C Ambient temperature ta -25 ... +50 °C Ambient temperature ta (at life-time 50,000 h) -25 ... +40 °C Storage temperature ts -30 ... +85 °C Dimensions LxWxH 270 x 63 x 40.5 mm Hole spacing D 246 mm Uconverter LCU 100 W 12/24 V indoor IP20 LCU indoor IP20 270 63 246 31,5 4,2 40,5 Ordering data Type Article number Packaging carton Packaging pallet Weight per pc. LCU 100/12 E020 24166327 20 pc(s). 640 pc(s). 0.65 kg LCU 100/24 E020 24166328 20 pc(s). 640 pc(s). 0.66 kg Specific technical data Type Max. casing temperature tc Output voltage Max. input power Output current range Max. output voltage2 LCU 100/12 E020 80 °C 12 V 118 W 0.8 – 8 A 13.2 V LCU 100/24 E020 80 °C 24 V 120 W 0.4 – 4 A 26.4 V 1 DC operation only with 24 V LED control gear. 2 At failure mode (230 V, 50 Hz). PHAS
