Wattage:
Voltage:
EAN:
Manufacturer:
Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load / Standby power consumption <0.5W
Output current level pre-settable
Typical lifetime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty

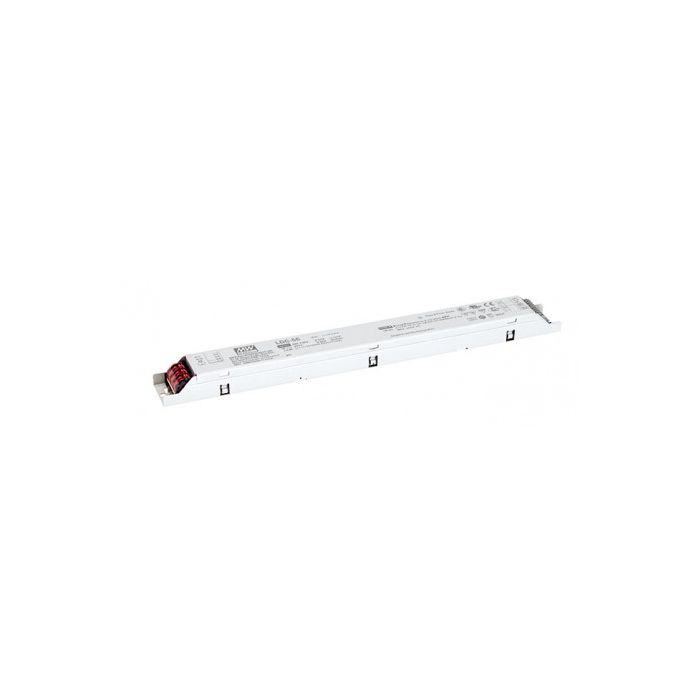

More Information Manufacturer Mean Well Output Wattage (W) 55 Dimmable (Type) 3 in 1 Dimming Output Voltage Range (V) 27 ~ 56V DC Output Adjustment 27-56V Dimensions 280 x 30 x 21mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved Output Voltage Options Single Working Temperature -25°C-+80°C PDF Datasheet LDC-55-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 55 Dimmable (Type) 3 in 1 Dimming Output Voltage Range (V) 27 ~ 56V DC Output Adjustment 27-56V Dimensions 280 x 30 x 21mm EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) Input Voltage 180-295VAC Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved Output Voltage Options Single Working Temperature -25°C-+80°C PDF Datasheet LDC-55-spec.pdf
