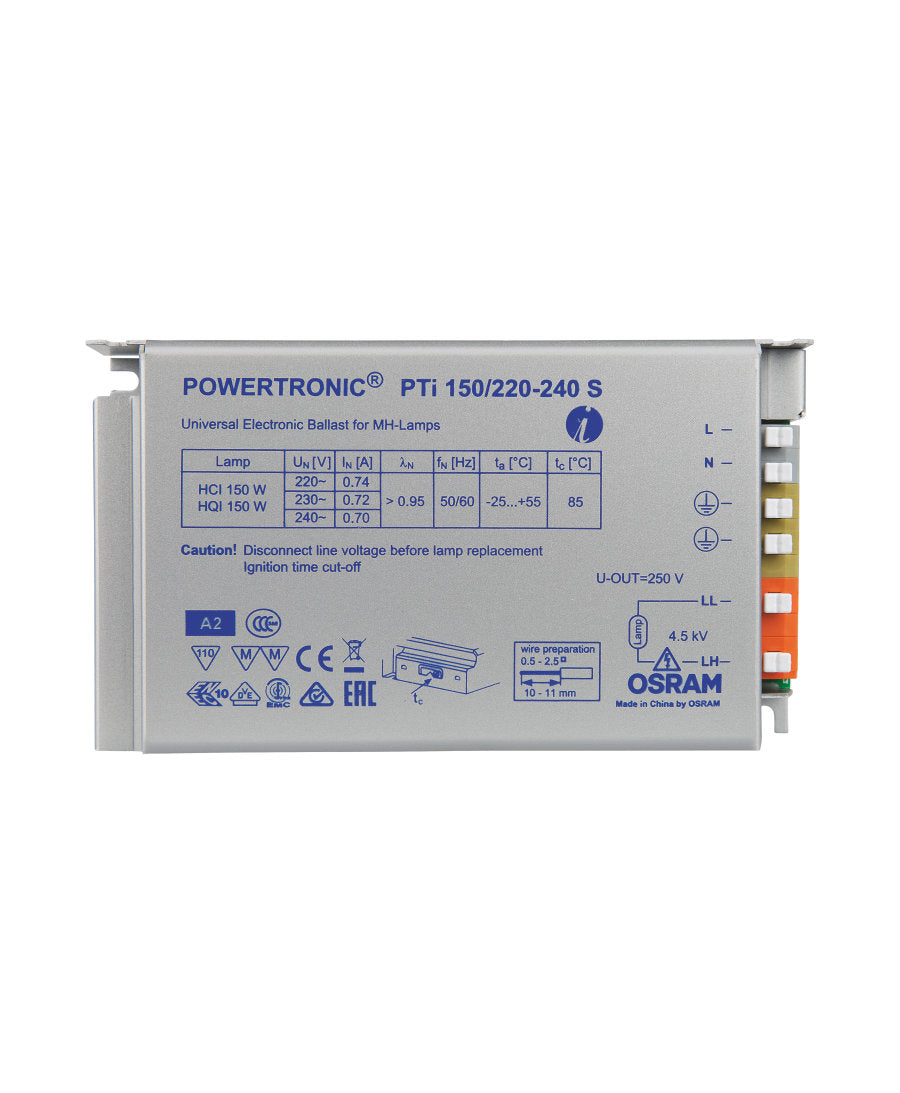

LEDVANCE/OSRAM - PTI150S-OS 150w Powertronic Ballast no Cable Clamp

LEDVANCE/OSRAMSKU: PTI150S-OS

Price:
Sale price£69.85

Wattage:
Voltage:
EAN:

Manufacturer:

Obsolete please consider the Philips alternative below

ALTERNATIVE



150w Powertronic Ballast - Osram - PTU150 - PTI150S

Product family benefits
  • Long reliable life at maximum permitted temperatures
  • Compact dimensions and low weight for small luminaire designs
  • Excellent thermal behavior for very high limit temperatures tc and ta
  • Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Areas of application
  • Shop lighting
  • Health and fitness areas (in luminaires with protection class IP66 or higher)
  • Effect and accent lighting

Safety advice
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!
Any conductive material must have a minimum distance of 4 mm to the front of the terminal block.
Installation by qualified electrician only.
Terminals for protective earth not suitable for any through connection.

Technical Data

Electrical data

Lamp wattage

147 W

Maximum output power

147 W

Line current

0.72 A


Ignition voltage

4.5 kVp

Operating frequency

0.165 kHz

System wattage

160.00 W

Efficiency in full-load

92 %

Input voltage AC

198…254 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Power factor λ

0.95


Inrush current

70 A


Max. ECG no. on circuit breaker 10 A (B)

4


Max. ECG no. on circuit breaker 16 A (B)

7


Max. no. of ECGs on 16A MCB with EBN-OS

17


Protective conductor current

0.4 mA

U-OUT (working voltage)

250 V

Max. working voltage between LH and LL

250 V

Max. working voltage betw. LL/LH & earth

250 V

Max. capacitance of wire ECG/lamp

120 pF

Dimensions & weight

Length

150.0 mm

Width

85.0 mm

Height

31.0 mm

Mounting hole spacing, length

139.0 mm

Mounting hole spacing, width

74.0 mm

Cable cross-section, input side

0.5…2.5 mm²

Cable cross-section, output side

0.5…2.5 mm²

Wire preparation length, input side

10…11 mm

Wire preparation length, output side

10…11 mm

Product weight

370.00 g

Colors & materials

Casing material

Metal

Temperatures & operating conditions

Ambient temperature range

-25…+55 °C

Maximum temperature at tc test point

85 °C

Lifespan

ECG lifetime

40000 h


Additional product data

Design / version

Built-in unit

Suitable for lamp power (1 lamp)

150 W

Capabilities

Max. cable length to lamp/LED module

1.5 m

Overheating protection

Power reduction and switch off at T > 85 °C at the tc point

ECG reset time

> 0.5 s

Dimmable

No

Restriction on ignition time

20 min

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

ENEC 10 / VDE / VDE-EMC / EAC / C-Tick

Type of protection

IP20

EEI – Energy Label

A2

Standards

Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547

Logistical data

Commodity code

850410809000

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4008321188090

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

4fcee8e3-9a67-448b-8bdf-1ba7f80a825c

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4008321188090 UNV

1 150mm x 85mm x 31mm 370.00g 0.40dm³
4008321188106 VS

20 403mm x 191mm x 205mm 8011.00g 15.78dm³
