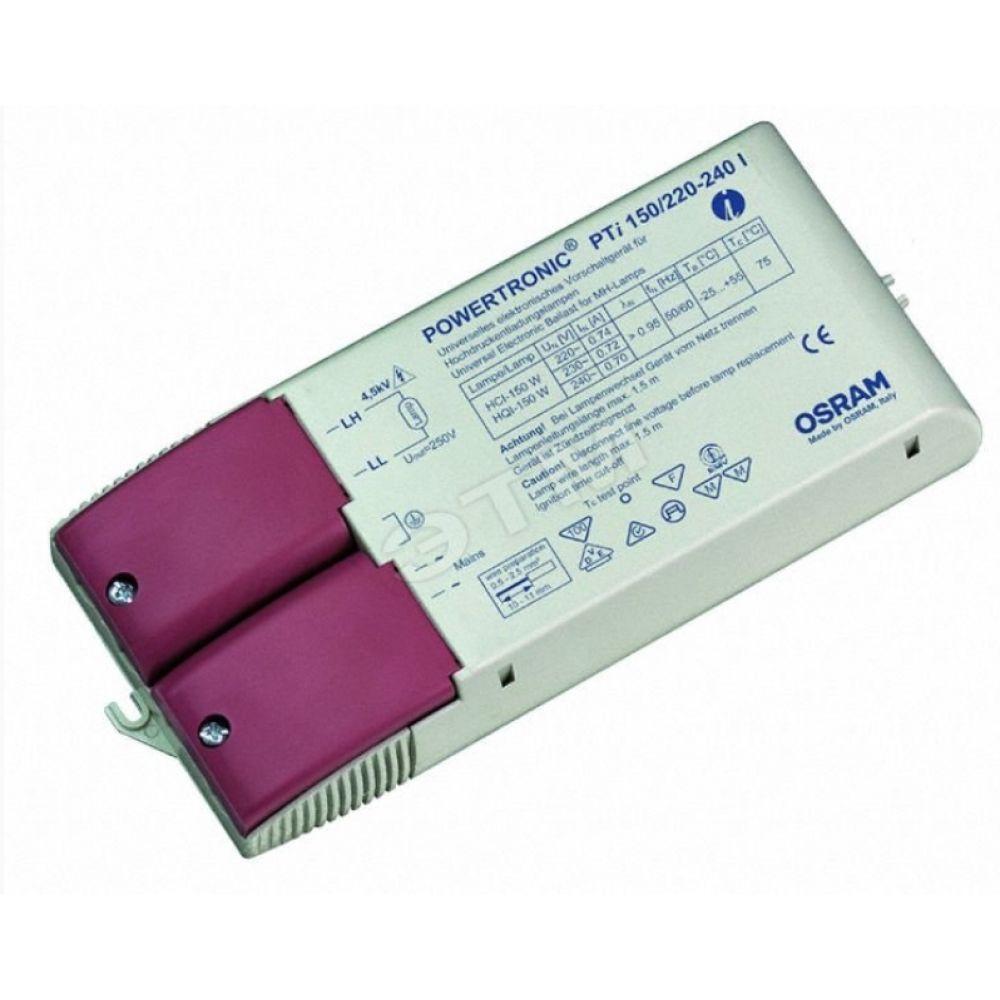

OSRAM - PTI70I-OS 70w Powertronic Ballast inc Cable Clamp


Price:
Sale price£33.32

Description


Technical Data

Electrical data

Lamp wattage

73 W

Maximum output power

73 W

Line current

0.36 A


Ignition voltage

4.5 kVp

Operating frequency

0.200…0.240 kHz

System wattage

79.00 W

Efficiency in full-load

92 %

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Power factor λ

0.95


Inrush current

45 A


Max. ECG no. on circuit breaker 10 A (B)

7


Max. ECG no. on circuit breaker 16 A (B)

13


Max. no. of ECGs on 16A MCB with EBN-OS

32


Maximum current for mains looping

16 A

Protective conductor current

0.3 mA

U-OUT (working voltage)

250 V

Max. working voltage between LH and LL

250 V

Max. working voltage betw. LL/LH & earth

250 V

Max. capacitance of wire ECG/lamp

120 pF

Dimensions & weight

Length

171.0 mm

Width

83.0 mm

Height

32.0 mm

Mounting hole spacing, length

163.0 mm

Cable cross-section, input side

0.75…2.5 mm²

Cable cross-section, output side

0.75…2.5 mm²

Wire preparation length, input side

10…11 mm

Wire preparation length, output side

10…11 mm

Product weight

290.00 g

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-25…+50 °C

Maximum temperature at tc test point

80 °C

Lifespan

ECG lifetime

50000 h


Additional product data

Design / version

With cable clamp

Suitable for lamp power (1 lamp)

73 W

Capabilities

Max. cable length to lamp/LED module

1.5 m

Overheating protection

Power reduction and switch off at T > 80 °C at the tc point

Overvoltage protection at 275…300 V

48 h


Overvoltage protection at 300…320 V

2 h


Overvoltage protection at 320…350 V

5 min


ECG reset time

> 0.5 s

Cable/wire types, input side

NYM-J 3x1.5 / NYM-J 3x2.5 / H05VV-F 3x1.5 / NHXMH-J 3x1.5 mm²

Cable/wire types, output side

SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1.0 mm²

Dimmable

No

Restriction on ignition time

20 min

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

ENEC 10 / VDE / VDE-EMC / EAC / C-Tick

Type of protection

IP20

EEI – Energy Label

A2

Standards

Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62493

Logistical data

Commodity code

850410809000

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4008321099501 UNV

1 171mm x 83mm x 32mm 290.00g 0.45dm³
4008321099518 VS

20 436mm x 110mm x 374mm 6207.00g 17.94dm³
