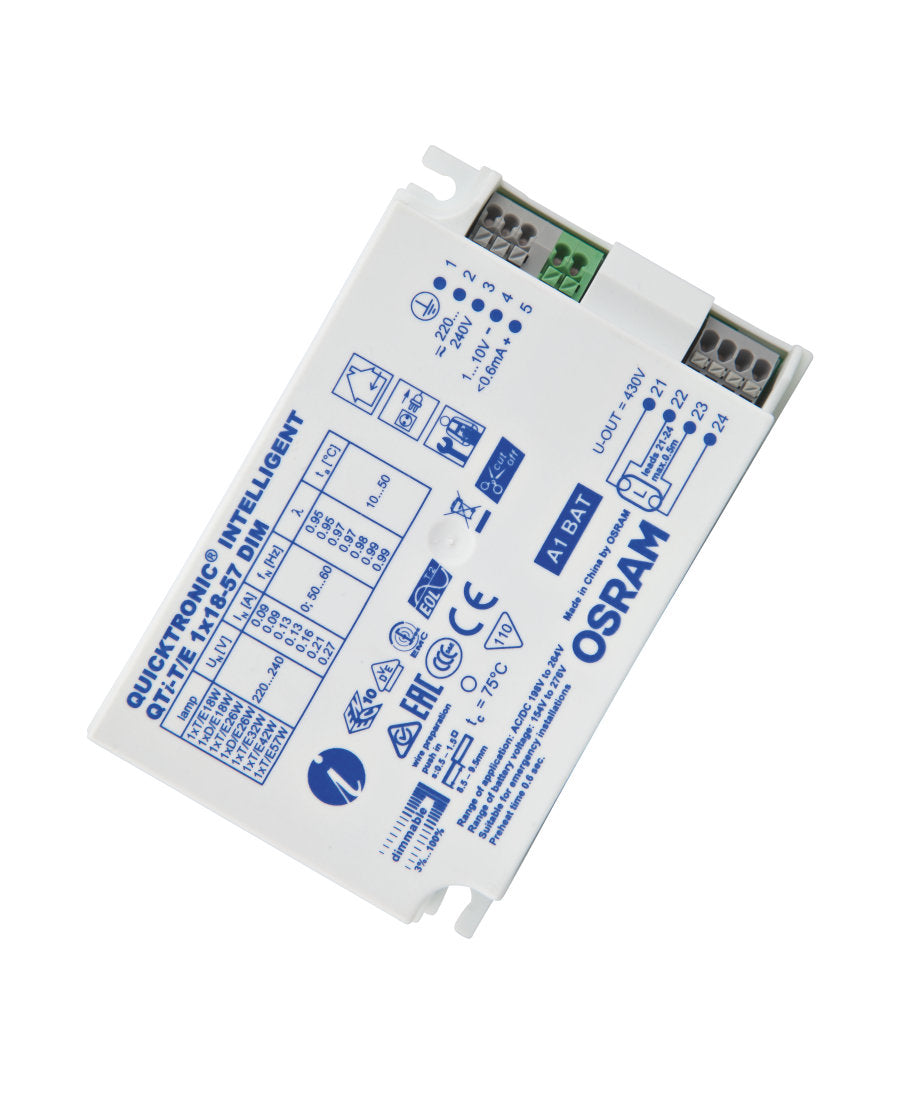

QUICKTRONIC INTELLIGENT DIM CFL 2X18…42w 1-10v - QTITE218-42DIM - 4008321060846
Product family benefits _ Same luminous flux with direct and alternating current _ Perfect lamp start for applications with motion sensors _ Dimming of amalgam lamps without flickering or reduced lifespan _ Very high efficiency thanks to cut-off technology _ Automatic restart after lamp replacement _ ECGs comply with MINERGIE standard due to very low standby consumption _ Configurable emergency power characteristics _ Control via the 1…10 V interface Areas of application _ Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100 _ Industry _ Open-plan offices, corridors and storage rooms _ Public buildings _ Suitable for luminaires of protection class I Product datasheet 1X18…57 DIM QUICKTRONIC INTELLIGENT DIM CFL | ECG dimmable 1…10 V for CFL Product family features _ Control via 1…10 V interface _ Supply voltage: 220…240 V _ Line frequency: 0 Hz | 50 Hz | 60 Hz _ Line voltage: 198…264 V _ Dimming range: 3…100 % luminous flux _ Lamp start: within 0.6 s _ Lifetime: > 100,000 h (for T = 65 °C at T c ) _ Automatic shutdown of defective lamps and at end of life (EoL T.2) _ Energy Efficiency Index EEI: A1 BAT _ Overtemperature protection: Thermal management at high t c temperatures _ Safety: to EN 61347-2-3 _ Lamp operation: to EN 60929 _ RI suppression: to EN 55015:2006+A1:2007+A2:2009/CISPR 15 _ Line harmonics according to EN 61000-3-2 _ Immunity according to EN 61547 __ August 1, 2021, 02:09:12 © 2021, OSRAM GmbH. All rights reserved. 1X18…57 DIM Page 1 of 6 Technical data Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 154…276 V Maximum output power 57 W Efficiency in full-load 90 % 1) Operating frequency 42…140 kHz Max. ECG no. on circuit breaker 10 A (B) 12 2) Max. ECG no. on circuit breaker 16 A (B) 19 2) Inrush current 30 A 1) at 230 V, 50 Hz 2) Type B Light technical data Starting time 0.6 s 1) 1) Optimized preheat start Dimensions & weight Length 123.0 mm Width 79.0 mm Height 33.0 mm Mounting hole spacing, length 111.0 mm Product weight 233.50 g Temperatures & operating conditions Ambient temperature range +10…+50 °C Permitted rel. humidity during operation 5…85 % 1) 1) Maximum 56 days/year at 85 % Product datasheet __ August 1, 2021, 02:09:12 © 2021, OSRAM GmbH. All rights reserved. 1X18…57 DIM Page 2 of 6 Lifespan ECG lifetime 100000 h 1) 1) At T case = 65°C at T c point / 10% failure rate Additional product data Product remark Optional cable clamp, see chapter ECG mountings - cable clamp Suitable for lamp power (1 lamp) 18…57 W Capabilities Dimming interface 1…10 V Dimming range 3…100 % Dimmable Yes Suitable for fixtures with prot. class I End of lamp life safety shutdown EOL T.2 Max. cable length to lamp/LED module 0.5 m Intended for no-load operation No Certificates & standards Approval marks – approval VDE / VDE-EMC / EL / EAC / RCM / CCC Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 EEI – Energy Label A1 BAT Protection class I Type of protection IP20 Logistical data Commodity code 850410809000 Product datasheet __ August 1, 2021, 02:09:12 © 2021, OSRAM GmbH. All rights reserved. 1X18…57 DIM Page 3 of 6 Wiring Diagram 319629_QTi-TE 1x18-57 DIM Download Data File Addon Technical Information 502689_Frequent switching Quicktronic Addon Technical Information 502785_ECG lifetime - QUICKTRONIC (DALI) DIM Certificates 334953_EMC-Marks approval Certificates 335097_INOTEC Certificates QTI DALI VDE 40021252 210920 Certificates 335169_Manufacturer´s declaration – LampECG combinations: Frequent switching Certificates 504208_VDE-EMC-CERTIFICATE QTI DALI DIM Declarations of conformity Quicktronic DIM CE 3364258 180121 Operating instructions 597739_EAC QTi TE DIM Product datasheet __ August 1, 2021, 02:09:12 © 2021, OSRAM GmbH. All rights reserved. 1X18…57 DIM Page 4 of 6 CAD data 3-dim 321653_QTi-TE 1x18-57 DIM CAD data 3-dim 321661_QTi-TE 1x18-57 DIM CAD data 3-dim 321662_QTi-TE 1x18-57 DIM CAD data PDF 321663_QTi-TE 1x18-57 DIM Ecodesign regulation information: Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled. Logistical Data Product code Product description Packaging unit (Pieces/Unit) Dimensions (length x width x height) Volume Gross weight 4008321060860 1X18…57 DIM Shipping carton box 20 428 mm x 78 mm x 257 mm 8.58 dm³ 4380.00 g The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products. When placing an order, for the quantity please enter single or multiples of a shipping unit. Disclaimer Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release. Product datasheet __ August 1, 2021, 02:09:12 © 2021, OSRAM GmbH. All rights reserved. 1X18…57 DIM Page 5 of 6 1X18…57 DIM QUICKTRONIC INTELLIGENT DIM CFL | ECG dimmable 1…10 V for CFL Product name Lamp group Nominal current Nominal wattage + Power loss Power factor λ [PIM] Luminous flux at 25 °C Number of lighting outlets Luminous flux at 35 °C 1X18…57 DIM DULUX D/E 18 W 0.09 A 20.00 W 0.95 1200 lm 1 DULUX D/E 26 W 0.13 A 29.00 W 0.97 1800 lm 1 DULUX T/E 18 W 0.09 A 20.00 W 0.95 1200 lm 1 DULUX T/E 26 W 0.13 A 29.00 W 0.97 1800 lm 1 DULUX T/E 32 W 0.16 A 36.00 W 0.98 2400 lm 1 DULUX T/E 32 W CONSTANT 0.16 A 36.00 W 0.98 2400 lm 1 DULUX T/E 42 W 0.21 A 47.00 W 0.99 3200 lm 1 DULUx T/E 42 W CONSTANT 0.21 A 47.00 W 0.99 3200 lm 1 FC 22 W 0.12 A 26.00 W 0.96 1 1750 lm FC 40 W 0.20 A 45.00 W 0.98 1 3200 lm Product datasheet __ August 1, 2021, 02:09:12 © 2021, OSRAM GmbH. All rights reserved. 1X18…57 DIM Page 6 of 6
