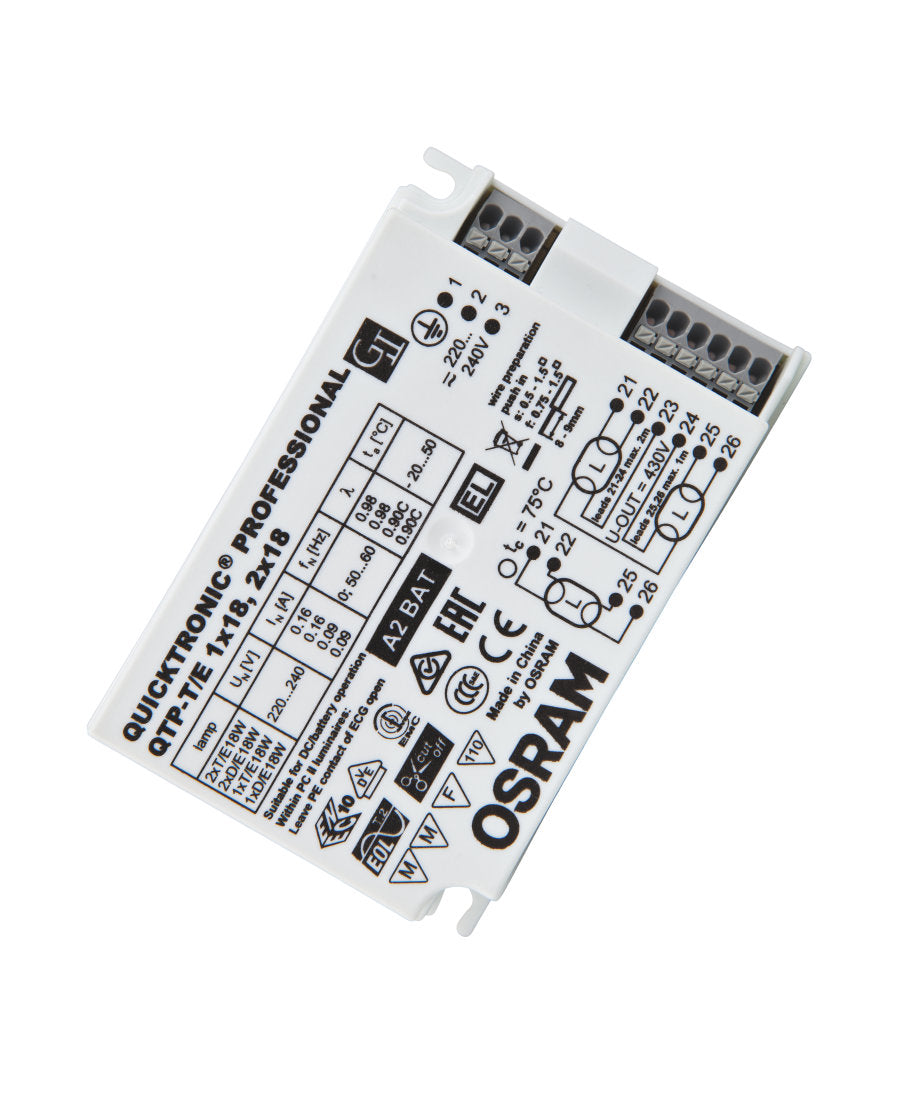

Osram QTPTE1218-OS 1x/2X 18w T/E Quicktronic Ballast


Price:
Sale price£10.85

Description

1x/2x18w TE Quicktronic Ballast - QTPTE1218 - 4008321537065

Product family benefits
  • Long lamp life
  • No adverse effect from frequent on/off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • Separate installations thanks to optional cable clamp for K2 and K3 casings
  • VDE/VDE EMC certified system
Areas of application
  • Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
  • Public buildings
  • Sports halls and factories
  • Suitable for luminaires of protection class I

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

176…264 V

Maximum output power

2 x 18 W

Efficiency in full-load

89 %


Operating frequency

40…50 kHz

Max. ECG no. on circuit breaker 10 A (B)

17


Max. ECG no. on circuit breaker 16 A (B)

28


Light technical data

Starting time

1.0 s

Dimensions & weight

Length

103.0 mm

Width

67.0 mm

Height

31.0 mm

Mounting hole spacing, length

94.0 mm

Product weight

149.00 g

Cable cross-section, input side

0.5…1.5 mm²

Cable cross-section, output side

0.5…1.5 mm²

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

50000 h


Additional product data

Suitable for lamp power (1 lamp)

18 W

Suitable for lamp power (2 lamps)

18 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I / II

Max. cable length to lamp/LED module

2.0 m / 1.0 m

Dimmable

No

Intended for no-load operation

No

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / ENEC 10 / GOST / RCM

EEI – Energy Label

A2 BAT

Standards

Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547

Protection class

III

Type of protection

IP20

Logistical data

Commodity code

850410809000
