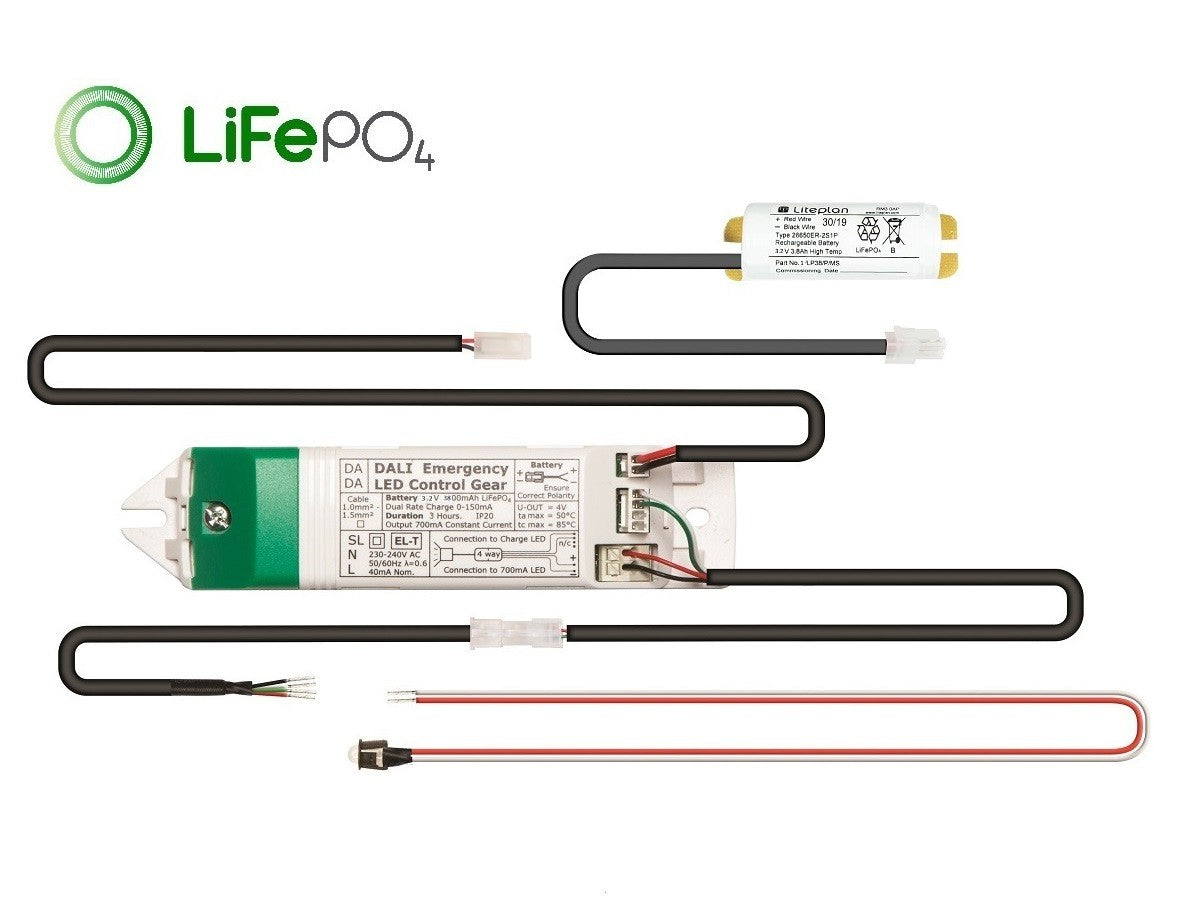

A 3-hour emergency DALI self-test driver designed for constant current LED devices, supplied complete with extra long life LiFePO4 battery packs. This product is suitable for integral applications. The DLP/1 operates a single 4V chip at 550mA. In keeping with the DALI standard, this unit will revert to standalone self-test if not connected to a DALI operating system. For a full list of our compatible devices, please see our LED Device range.
This range operates with LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour due their long operational life.
DLP/1 DALI Addressable Range
Specifications
-
- For Integral Use with Slim Batteries
- High Temperature Tolerance Batteries
- Extra Long Life LiFePO4 Batteries
- DALI Self-Test Module
- High Output (700mA) Version Available
-
|
DLP/1 |
Input Voltage |
230-240 Volts AC – 50/60Hz |
Power Rating |
Charging Maintained: 32mA λ = 0.6
Standby Non-Maintained: 8mA λ = 0.15
|
Em. Duration |
3-hours |
Battery Type |
IRF26650 LiFePO4
|
Battery Voltage |
3.2V |
Battery Capacity |
3.8Ah |
Charge Current |
Dual Rate 0-225mA |
Discharge Current |
700mA nominal |
Recharge Time |
24-hours |
TC Max |
60°C Module / 55°C Battery |
Output Load |
1 x 2W |
Output Current |
550mA |
Module Dims. |
149mm x 35mm x 28mm |
Battery Dimensions (with end caps) |
220mm long x 22mm wide x 24mm high |
Fixing Centres |
132mm x M4 |
Module Weight |
0.1Kg |
Battery Weight |
0.11Kg |
