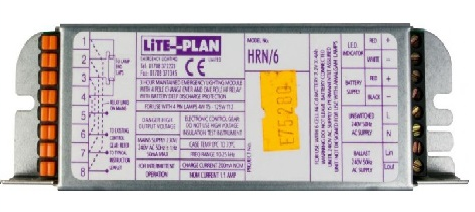

Emergency Module 6 Cell 4-100W Florescent ballast
• Suitable for Most Compact Fluorescent Lamps • Deep Discharge Protection • Four Pole Changeover Relay • Fifth Pole Relay for Ballast Protection • High Temperature NiCd Batteries • Compact Module Dimensions • Can be Provided in Various Remote Enclosures • Operates One Lamp Within Multi Lamp Circuits A 3 hour emergency lighting conversion kit which operates with high temperature 7.2V NiCd batteries. The unit is designed to suit a wide range of fluorescent tubes. Please see lamp compatibility chart to see the BLF that will be achieved for your particular tube. Please see separate datasheets for Remote Enclosure details. Order Codes HRN/6-K For the converison of fluorescent tubes from 4W to 125W. Supplied as module, battery and LED kit. HRN/6-R As above, but supplied within a suitable remote enclosure with a connecting loom. Technical Details: Mains Supply 230-240V AC 50/60 Hz Power Rating 22mA λ = 0.88 Emergency Duration 3 hours Battery Type 7.2V 4.5Ah NiCd Charge Current 200mA Cut-Off Voltage 6V Discharge Current 1.05 Amp Tc Point and Temperature 70 °C Case Side Module Dimensions (LxWxH) 165mm x 45mm x 29mm Battery Dimensions (LxØ) 2 x 220mm x 37mm Overall Kit Weight 1.1Kg Tel +44 (0)1708 372223 | www.liteplan.com | firstname.lastname@example.org | RM3 0AP. UK Technical Specification HRN/6 Conversion Kit Liteplan reserve the right to change colour, price or specification without prior notice ISS 200918 There are 2 main versions available -
