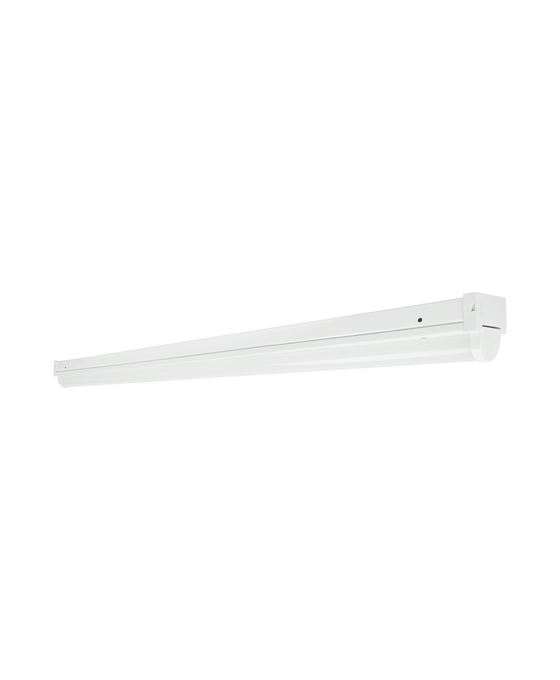

LN UO EL 1500 P 48W ML 83040 WT

Product benefits

• Highly versatile due to selectable CCT and lumen steps (Multi Select)
• Seamless integration of luminaires with emergency lighting function into general lighting
• Easy wiring thanks to included prewired driver and battery for Emergency lighting function
• Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
• Convenient visualization of results of automatic test with an included control LED
• Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
• High luminous efficacy in normal operation
• Replacement of conventional T8 luminaires with up to 7200 lm
• Energy savings up to 70 % (compared to luminaires that use fluorescent lamps)
• Robust structure with IK08

Areas of application

• Emergency illumination of escape routes
• Antipanic lighting
• Buildings requiring up to 3 h emergency light operation
• Direct replacement for luminaires with fluorescent lamps
• Indoor applications
• Industrial and commercial halls
• Public areas
• Corridors, stairwells, basements

Product features

• Certified according to European norms (EN 60598-1:2020; EN 60598-2-22:2021)
• Luminaire suitable for normal lighting and emergency lighting
• Self-contained luminaires
• Emergency lighting function: battery discharge time of 3 h
• Function test of emergency lighting: automatic (AT)
• Battery technology: LiFePO4
• Very high luminous efficacy: up to 150 lm/W
• Robust metal housing and PC diffuser
• Wiring at back side of luminaire
• Through wiring possible

Equipment / Accessories

• Mounting screws and dowels included

Safety advice

• All electrical connections must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
