Wattage:
Voltage:
EAN:
Manufacturer:

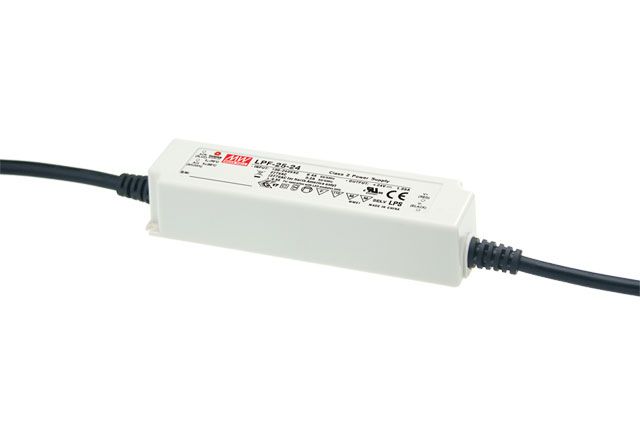

Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input (up to 305VAC) / Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage 42V Dimmable (Type) No Dimensions 148 x 40 x 30 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~305VAC; 127~431VDC Safety Standards Design refer to UL8750 ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet LPF-25-spec_13.pdf
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Voltage 42V Dimmable (Type) No Dimensions 148 x 40 x 30 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~305VAC; 127~431VDC Safety Standards Design refer to UL8750 ENEC EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+70°C (refer to output derating curve) PDF Datasheet LPF-25-spec_13.pdf
