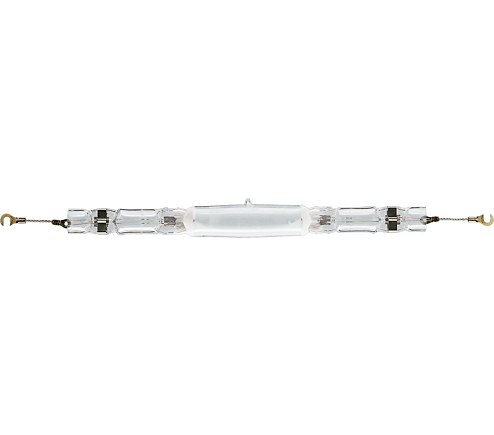

MASTER MHN-LA 2000W/842 400V XWH
Philips MHN-LA 2000w/842 400v xwh.
- Philips 2000 watt long arc lamp.
- Used in Sports and Stadia floodlighting.
- Base: X528 cap
- Voltage: 380 – 440 volts.
- Length: 353 mm.
- Colour: Cool White / 4200k.
- Order Code: 200747.
- EAN: 8711500200747.
Data Sheet – Philips MHN-LA 2000
General Information
| Cap base |
X528 [ X528]
|
| Operating position |
P5 [ Parallel +/-5D or Horizontal(HOR)]
|
| Life to 5% failures (nom.) |
4500 h
|
| Life to 10% failures (nom.) |
6000 h
|
| Life to 20% failures (nom.) |
8500 h
|
| Life to 50% failures (nom.) |
13000 h
|
Light Technical
| Colour Code |
842 [ CCT of 4,200 K]
|
| Luminous flux (rated) (min.) |
193000 lm
|
| Luminous flux (rated) (nom.) |
214000 lm
|
| Colour designation |
Cool White (CW)
|
| Lumen maintenance 1,000 hours (nom.) |
94 %
|
| Lumen maintenance 10,000 hours (nom.) |
63 %
|
| Lumen maintenance 2,000 hours (nom.) |
89 %
|
| Lumen maintenance 5,000 hours (nom.) |
76 %
|
| Chromaticity coordinate X (nom.) |
370
|
| Chromaticity coordinate Y (nom.) |
370
|
| Correlated Colour Temperature (Nom) |
4200 K
|
| Luminous efficacy (rated) (nom.) |
105 lm/W
|
| Colour rendering index (nom.) |
72
|
Operating and Electrical
| Lamp supply voltage |
400 V [ 400]
|
| Power (Rated) (Nom) |
2040.0 W
|
| Lamp current run-up (max.) |
15 A
|
| Lamp current (EM) (nom.) |
9.6 A
|
| Ignition supply voltage (min.) |
342 V
|
| Voltage (Max) |
245 V
|
| Voltage (Min) |
220 V
|
| Voltage (Nom) |
235 V
|
Controls and Dimming
| Dimmable |
No
|
Mechanical and Housing
| Lamp Finish |
Clear
|
| Cap-base information |
Cable (C)
|
Approval and Application
| Energy efficiency label (EEL) |
A+
|
| Mercury (Hg) content (nom.) |
194 mg
|
| Energy consumption kWh/1,000 hours |
2244 kWh
|
UV
| Specific eff. radiant power |
280 mW/klm
|
Luminaire Design Requirements
| Bulb temperature (max.) |
920 °C
|
| Pinch temperature (max.) |
350 °C
|
Product Data
| Full product code |
871150020074700
|
| Order product name |
MASTER MHN-LA 2000W/842 400V XWH
|
| EAN/UPC – product |
8718291548201
|
| Order code |
20074700
|
| Local order code |
2000MHNLA842
|
| SAP numerator – quantity per pack |
1
|
