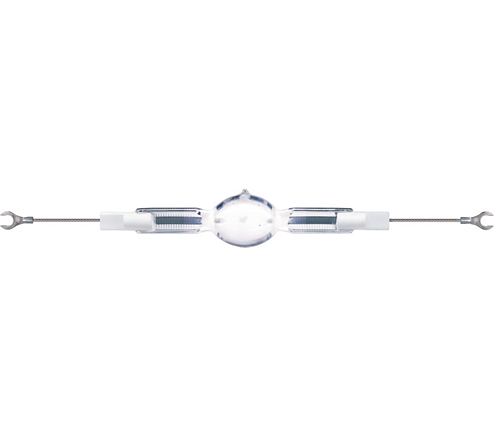

Philips MASTER MHN-SB 2000W/956 400V K12s-7 WH HO 92860000

Specifications

General information

Cap-Base	CABLE  [ Cable]
Operating Position	P15  [ Parallel +/-15D or Horizontal(HOR)]
Life to 5% Failures (Nom)	1700 h
Life To 10% Failures (Nom)	2300 h

Life to 20% Failures (Nom)	3000 h
Life to 50% Failures (Nom)	4500 h

Light technical

Color Code	956  [ CCT of 5600K]
Luminous Flux (Rated) (Min)	215000 lm
Luminous Flux (Rated) (Nom)	220000 lm
Color Designation	Daylight
Lumen Maintenance 1000 h (Nom)	95 %
Lumen Maintenance 2000 h (Nom)	91 %
Chromaticity Coordinate X (Nom)	334

Chromaticity Coordinate Y (Nom)	366
Correlated Color Temperature (Nom)	5600 K
Luminous Efficacy (rated) (Nom)	108 lm/W
Color Rendering Index (Min)	-
Color Rendering Index (Nom)	81

Operating and electrical

Lamp supply voltage	400 V  [ 400]
Power (Nom)	2070.0 W
Lamp Current Run-Up (Max)	17 A
Lamp Current (EM) (Nom)	11.8 A

Ignition Supply Voltage (Min)	360 V
Voltage (Max)	220 V
Voltage (Min)	185 V
Voltage (Nom)	205 V

Controls and dimming

Dimmable

No

Mechanical and housing

Bulb Finish	Clear
Cap-Base Information	-

Bulb Shape

TD40  [ TD 40mm]

Approval and application

Mercury (Hg) Content (Nom)

215 mg

Energy Consumption kWh/1000 h

2277 kWh

UV

Specific Eff. Radiant Power

60 mW/klm

Luminaire design requirements

Bulb Temperature (Max)	1015 °C
Pinch Temperature (Max)	450 °C

Pinch Temperature (Max)-DUP(do not use)

450 °C

Product data

Full product code	872790092860000
Order product name	MASTER MHN-SB 2000W/956 400V K12s-7 WH HO
EAN/UPC - Product	8718291548454
Order code	928196805130
Numerator - Quantity Per Pack	1

Local code description	MST MHN-SB 2000W/956 400V K12s-7 WH HO
Numerator - Packs per outer box	1
Material Nr. (12NC)	928196805130
Net Weight (Piece)	0.058 kg
