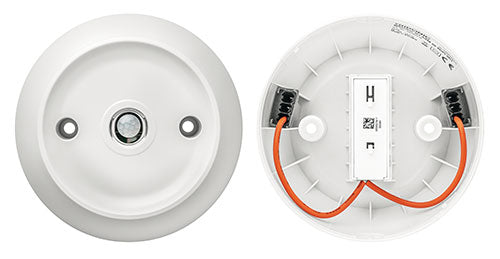

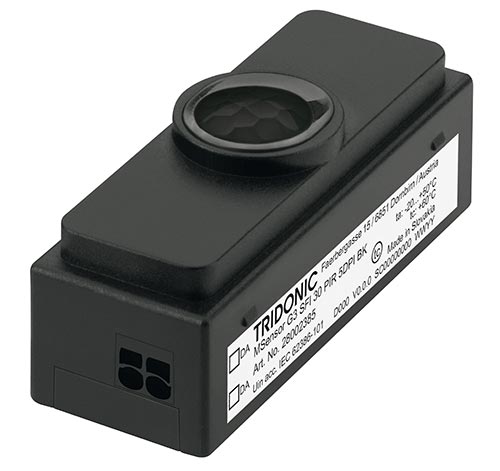

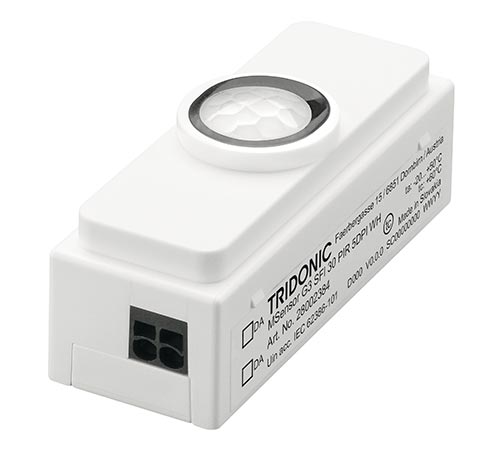

MSensor G3 PIR 5DPI DALI-2 multi-sensor

Product description

• Sensor developed to work with the latest DALI specification
• Monitoring of ambient light and motion detection
• Remote control interface allowing infrared remote control interaction
• Individual adjustment of the parameters with configuration software
• Power supply via DALI line
• Shutter for preventing movement detection in one direction included
• Small dimensions allowing easy and inconspicuous integration in luminaries
• Wide range of accessories allowing extended application range
• 5 years guarantee

Housing properties

• Casing: polycarbonat, black or white
• Type of protection IP20

Note

• Tridonic MSensor G3 family sensors are developed according to DALI Standard EN 62386-101 Ed.2, also known as DALI-2. To be able to use the sensor in such installation, an application controller is necessary.
• List of approved application controller can be found on our WEB page in 28002386
