Wattage:
Voltage:
EAN:
Manufacturer:
GENERAL INFORMATION
Product Code

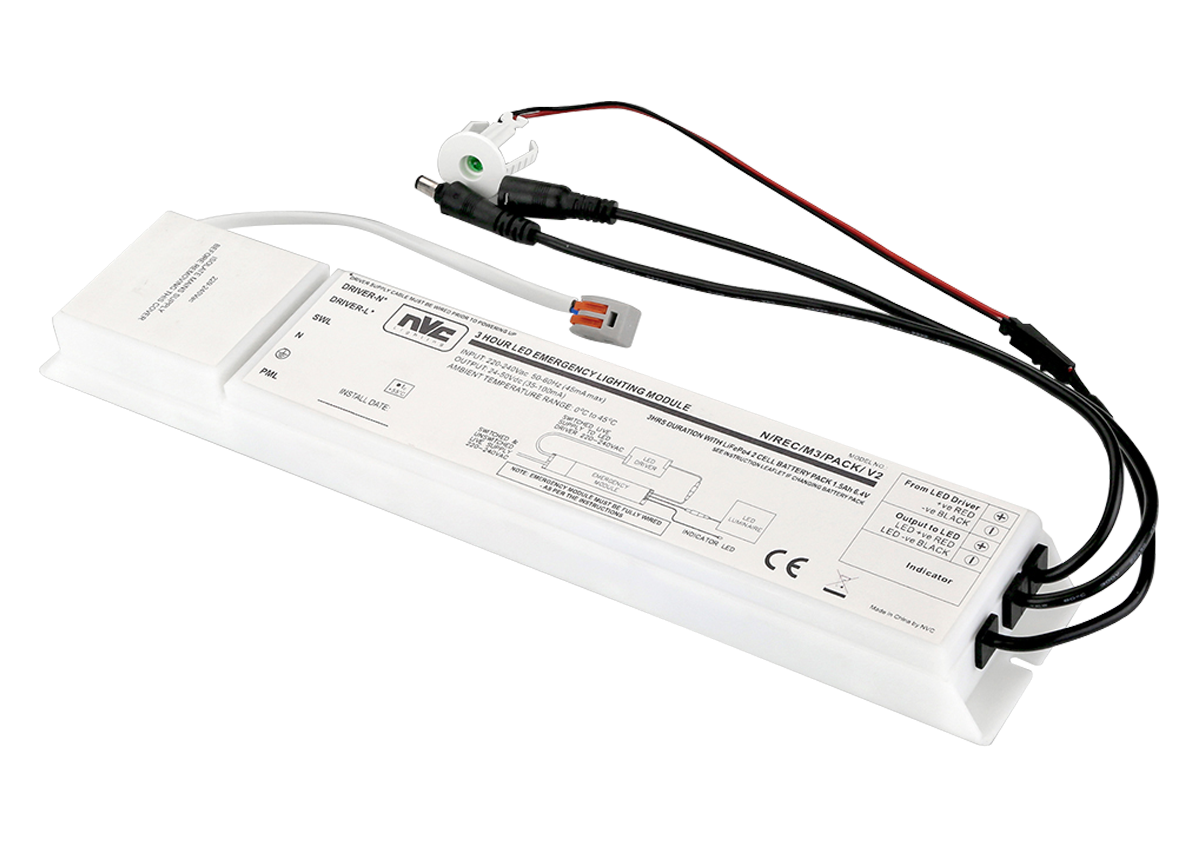

N/REC/STM3/PACK/V2
Product Range
ACCESSORIES
Product Category
LED Panels
Fixing Method
Recessed
IP Rating
IK Rating
Warranty
DIMENSIONS/WEIGHT
Dimensions
W: 61 - H: 30 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
0.41
Construction
Body Material
PC
Body Colour
White
Optical Material
Optical Finish
Termination
4x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Remote
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
Power Consumption (W)
2
Efficacy (l.lm/c.W)
Operating Temp. (Min/Max)
0°C to 40°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
Colour Rendering Index (CRI)
Lumen Depreciation
SDCM
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
Drivers per MCB *
Class
Class 2
Power Factor (PF)
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
35 to 100
Forward Voltage (Vf)
20 to 55
EMERGENCY DATA
Mode of Operation
Non-Maintained
Battery Duration
3 hours
Battery Type
LiFePO4
Battery Specification
6.4V 1.5Ah
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
