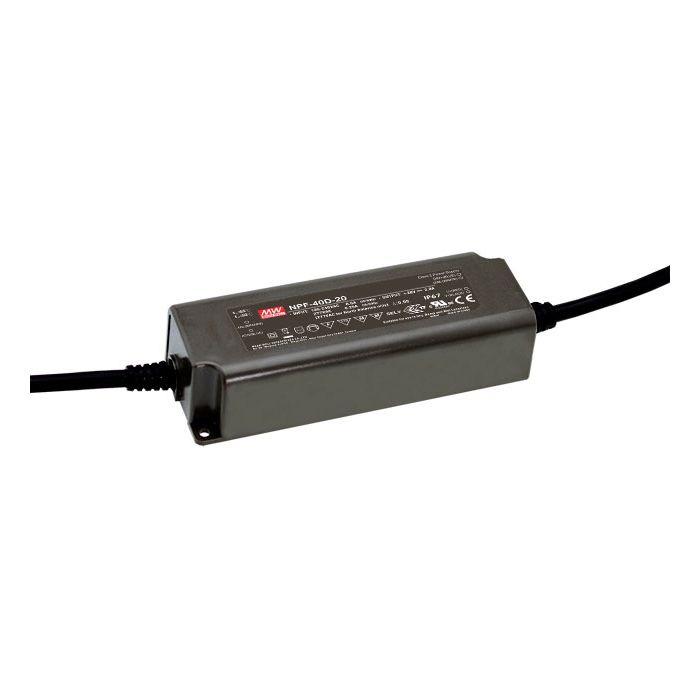

NPF-40D-20 - Mean Well LED Driver NPF-40D-20 2A 40W

MeanwellSKU: NPF-40D-20

Sale price£40.41



Fully encapsulated with IP67 levelProtections: Short circuit/ Over Current/ Over voltage/ Over temperatureOther features:Built-In 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)Universal AC input (up to 305VAC) / Full RangeHigh efficiency up to 91%Cooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGClass 2 power unitSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 40 Output Voltage 20V DC Output Adjustment 12-20V Dimensions 150x 53x 35 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-40D-spec.pdf
