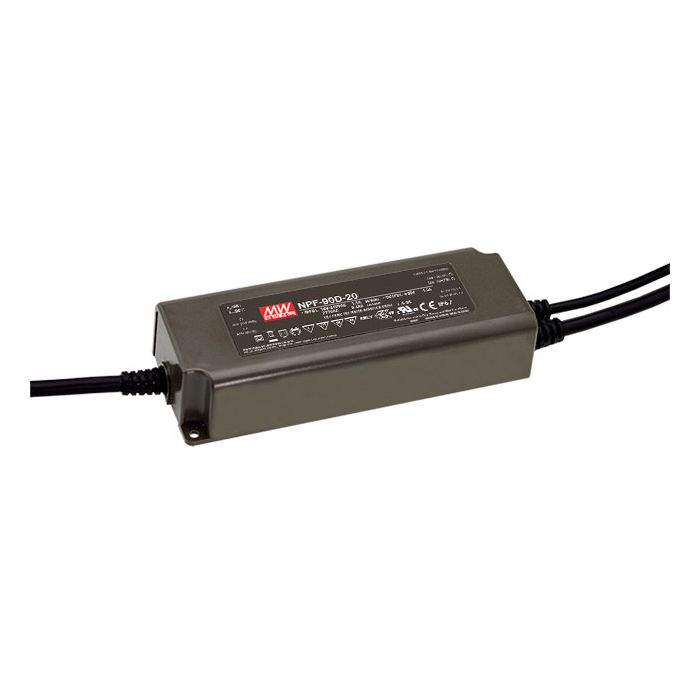

NPF-90D-48 - Mean Well LED Driver NPF-90D-48 Series 90.24A 90.24W

MeanwellSKU: NPF-90D-48

Price:
Sale price£60.95

Wattage:
Voltage:
EAN:

Manufacturer:

Fully encapsulated with IP67 levelProtections: Short circuit/ Over Current/ Over voltage/ Over temperatureOther features:Universal AC input (up to 305VAC) / Full RangeHigh efficiency up to 91%Cooling by free air convectionBuilt-in active PFC functionBuilt-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance) Fully isolated plastic caseClass II power unit, no FGSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Voltage 48V DC Output Adjustment 28.8-48V Dimensions 171x 63x 37.5 EMC Standards Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, EN55024, light industry level(surge L-N : 2KV), criteria A. Input Voltage 90-305VAC Safety Standards UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1 Output Voltage Options Single Working Temperature -40-+80°C PDF Datasheet NPF-90D-spec.pdf
