BALLAST
|
TECHNICAL DATA
|
Type
|

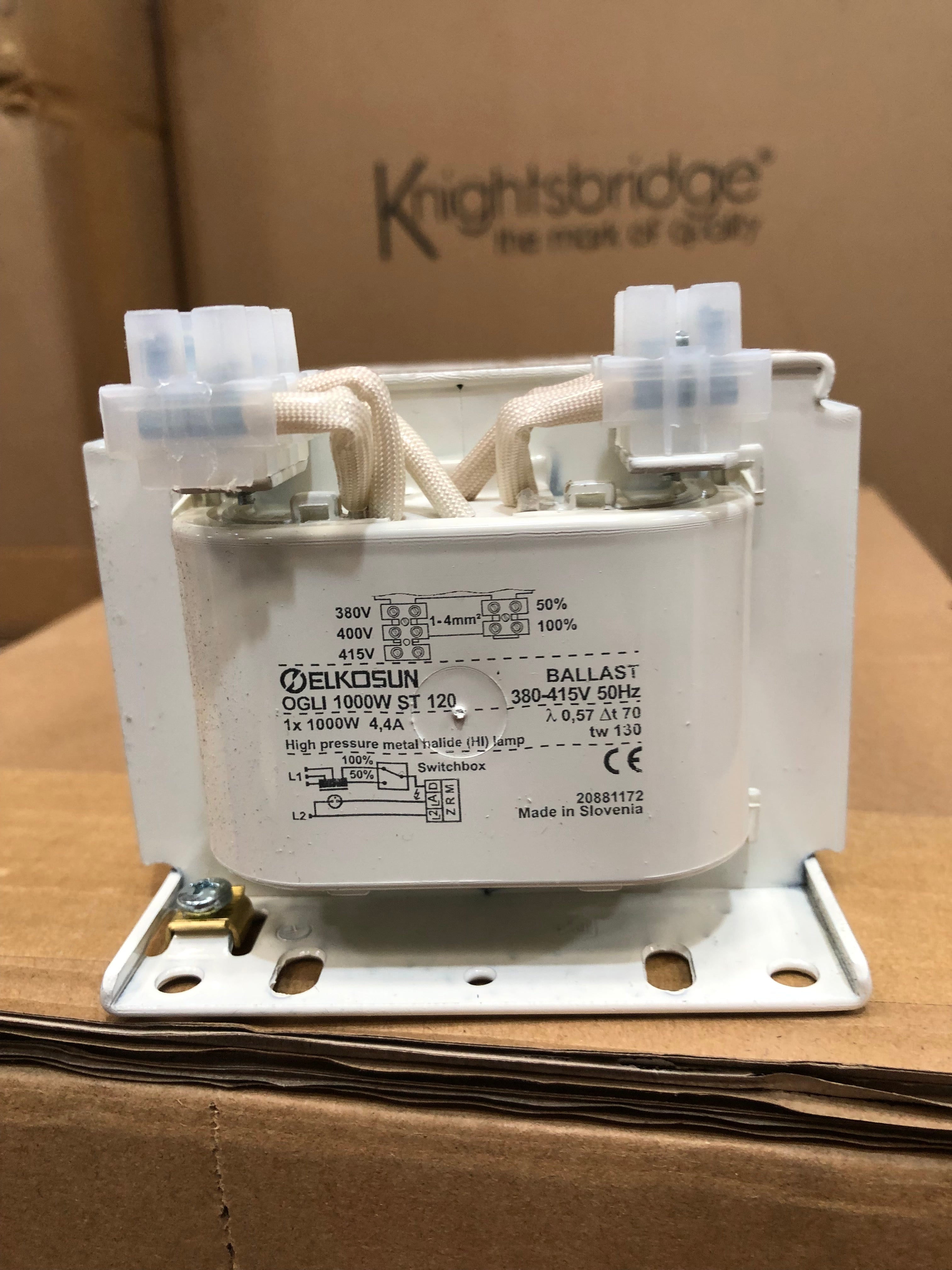

OGLI 1000W ST 120 380-415/50 100/50%
|
Ballast for HI lamps
OGLI 1000W ST 120 380-415/50 100/50% Ord. No. 20881172 - 11034
Capacitor required : CA15MFD-480-mt
Stanadards Directeives Declarations Approvals
|
|
EN 60923, EN 61347 RoHS - 2011/65/EU CE
-
|
Lamp
|
Type
|
HI 1000W 4,4A
|
Network (line voltage)
|
V / Hz
|
380; 400; 415 / 50
|
Current
|
A
|
4,4
|
Losses - warm
|
W
|
41,8
|
cosfin
|
-
|
0,57
|
h
|
%
|
-
|
tw/D tn
Thermal protection
|
K
|
130/ 70
No
|
L
|
mm
|
174
|
D1
|
mm
|
160
|
Weight
|
Kg
|
7,75
|
Packing
|
Pcs./Carton
|
3
|
Packing
|
Pcs./Pallet
|
108
|
Impregnation
|
|
Vacuum impregnated with polyester resin
|
Elkosun d.o.o. Tržaška cesta 23
SI -2000 Maribor www.elkosun.com
|
TD 11034
Date: 6. 06. 2016
|
Page 1
|
