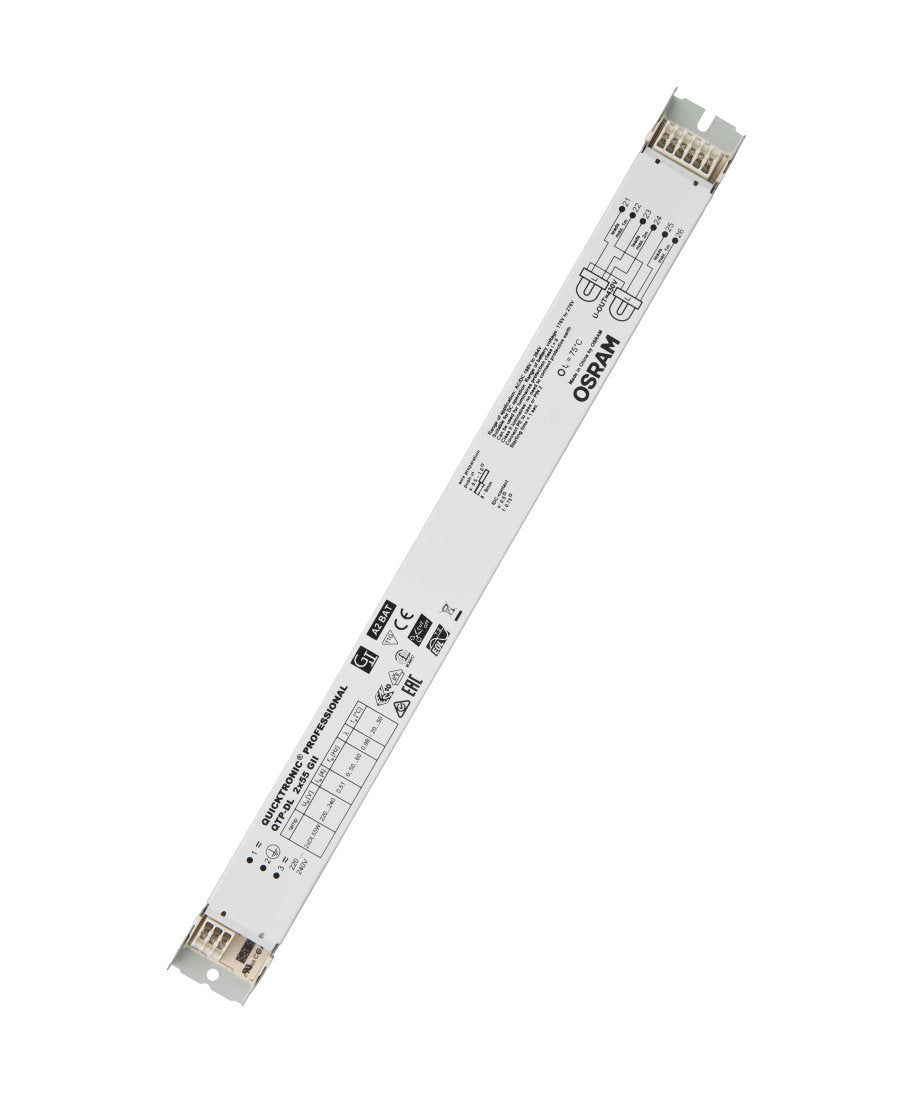

The Osram QTP-DL 2x55/220-240 is a non dimmable high frequency ballast to run 2 x 55w Long single turn PL-L compact fluorescent lamp.
Product family benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Open-plan offices, corridors and storage rooms
- Public buildings
- Suitable for luminaires of protection classes I and II
Technical Data
Electrical data
Input voltage AC
198…264 V
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Input voltage DC
176…276 V
Maximum output power
2 x 55 W
Efficiency in full-load
95 %
Operating frequency
40…50 kHz
Max. ECG no. on circuit breaker 10 A (B)
8
Max. ECG no. on circuit breaker 16 A (B)
13
Inrush current
28 A
Light technical data
Starting time
1.0 s
Dimensions & weight
Length
360.0 mm
Width
30.0 mm
Height
21.0 mm
Mounting hole spacing, length
350.0 mm
Product weight
265.00 g
Temperatures & operating conditions
Ambient temperature range
-20…+50 °C
Permitted rel. humidity during operation
5…85 %
Lifespan
ECG lifetime
50000 h
Additional product data
Suitable for lamp power (2 lamps)
55 W
Capabilities
Suitable for fixtures with prot. class
I / II
End of lamp life safety shutdown
EOL T.2
Intended for no-load operation
No
Max. cable length to lamp/LED module
2.0 m / 1.0 m
Dimmable
No
Certificates & standards
Approval marks – approval
VDE / VDE-EMC / ENEC 10 / GOST / RCM
EEI – Energy Label
A2 BAT
Standards
Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547
Type of protection
IP20
Protection class
III
Logistical data
Commodity code
850410809000
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration
14-04-2022
Primary Article Identifier
4008321390172
Candidate List Substance 1
Orange lead (lead tetroxide)
CAS No. of substance 1
1314-41-6
Candidate List Substance 2
Lead
CAS No. of substance 2
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
65971722-45e8-4623-b17a-f93e23c6b0bd
