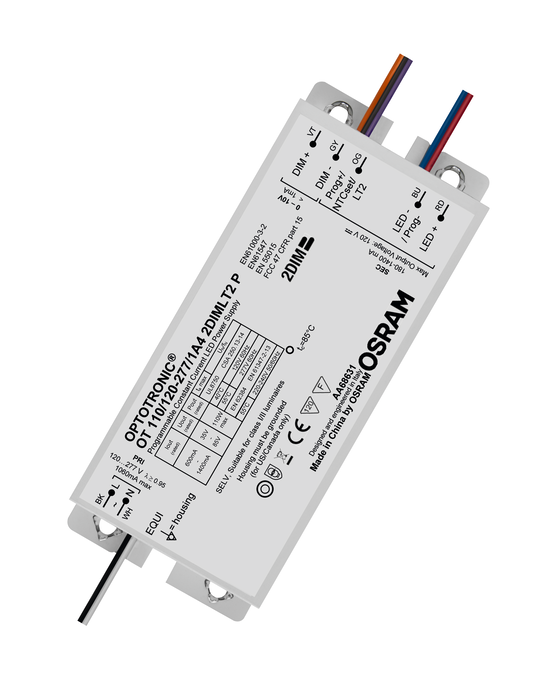

OT 110/120…277/1A4 2DIMLT2 P

Product benefits

• 2DIM functionality in one device (AstroDIM, 0…10 V)
• High surge protection: up to 6 kV (in protection class I or II)
• Fast programming without mains voltage
• High efficiency
• Great flexibility due to wide operating temperature range of -40…55 °C
• Protection through double isolation between mains input and LED output
• IP rating: IP64

Areas of application

• Street and urban lighting
• Industry
• Suitable for luminaires of protection classes I and II

Product features

• Available with different wattage: 50 W, 100 W, 110 W
• Input voltage: 120…277 V
• Available with output current range: up to 1,400 mA
• Flexible current setting with one additional wire (LEDset2)
• AstroDIM for autonomous dimming with five independent levels (astro mode)
• Isolated 0…10 V interface for unidirectional telemanagement systems
• Constant Lumen Output (CLO)
• Overtemperature protection with external NTC or LEDset2 interface

Equipment / Accessories

• OT Programmer hardware for configuration of 2DIM ECGs necessary
• Programmable via Tuner4TRONIC software
