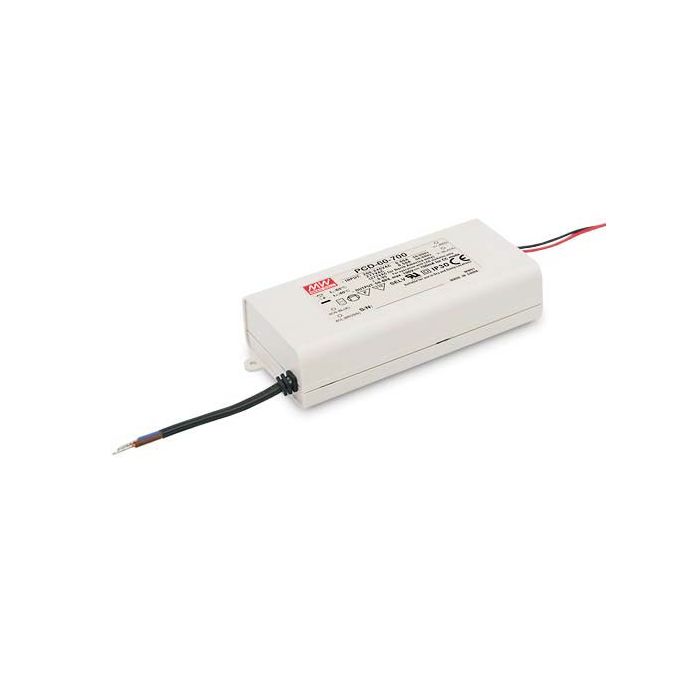

PCD-60-S - Mean Well PCD-60 Series LED Driver 58W – 60W 500mA – 2400mA

AC phase-cut dimmingWorks with leading edge and trailing edge TRIAC dimmersProtections: Short circuit/ Over temperatureOther features:180~295VAC inputConstant current designFully isolated plastic caseBuilt-in active PFC functionIP30 designClass 2 power unit/ Pass LPSIsolation class II, no F.G.Cooling by free air convection3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 60 Output Current Choose Option Dimmable (Type) AC phase-cut Output Voltage Range (V) 50~86 Dimensions 128x 60x 31.5 EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A Input Voltage 180~295VAC Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved Output Voltage Options Single Working Temperature -30~+50°C (refer to output derating curve) PDF Datasheet PCD-60-spec_2.pdf
