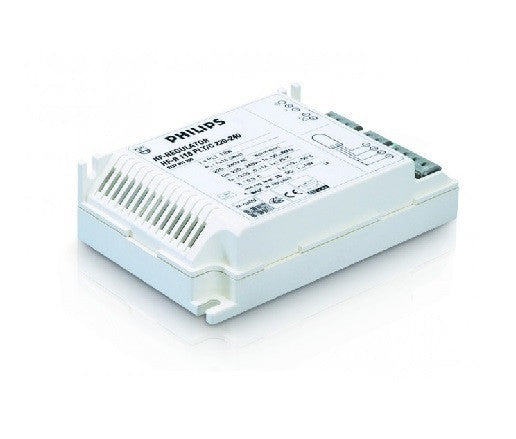

HF-R 218 PL-T/C EII 220-240V 50/60Hz

Specifications

General information

Application Code	EII
Type Version	mk3
Lamp Type	PL-T/C
Number of Lamps	2 piece/unit

Number of Products on MCB (16A Type B) (Nom)	28
Automatic Restart	Yes

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 to 60 Hz
Operating Frequency (Max)	100 kHz
Operating Frequency (Min)	40 kHz
Ignition Method	Programmed Start
Crestfactor (Max)	1.7
Power Factor 100% Load (Nom)	0.95
Mains Voltage Performance (AC)	-8%-+6%

Mains Voltage Safety (AC)	-10%-+10%
Earth Leakage Current (Max)	0.5 mA
Inrush Current Width	0.35 ms
Constant Wattage Deviation	-2%/+2%
Ballast Factor (Nom)	1.0
Inrush Current Peak (Max)	28 A
Efficiency at full load [%]	87.26 %

Wiring

Connector Type Input Terminals	Insert
Cable Capacity Output Wires Mutual (Nom)	30 pF
Connector Type Output Terminals	Insert
Connector Type Control Input Terminals	Insert
Wire Striplength	7.5-8.5 mm
Dual Fixture Master/Slave	Not applicable  [ Master/Slave oper. not applicable]

Control Input Terminal Cross Section	0.50-1.50 mm²
Input Terminal Cross Section	0.50-1.50 mm²
Output Terminal Cross Section	0.50-1.50 mm²
Cable Capacity Output Wires to Earth (Nom)	75 pF

System characteristics

Rated Ballast-Lamp Power

18 W

Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-20 °C
T-Storage (Max)	80 °C
T-Storage (Min)	-25 °C

T-Case Lifetime (Nom)	65 °C
T-Case Maximum (Max)	75 °C
Stable Lamp Operation Temperature	Not Specified

Controls and dimming

Control Interface	1-10V
Regulating Level Power	1%-100%

Control Input Protection

Yes (Basic insulation)

Mechanical and housing

Housing

S 123x79x33

Emergency operation

Battery Voltage Lamp Ignition

198-254 V

Battery Voltage Lamp Operation

176-254

Approval and application

Energy Efficiency Index	A1 BAT
IP Classification	IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz	EN55015
EMI 30 MHz ... 1000 MHz	EN55022 level B
Safety Standard	IEC 61347-2-3
Performance Standard	IEC 60929
Quality Standard	ISO 9000:2000
Environmental Standard	ISO 14001
Harmonic Current Emission Standard	IEC 61000-3-2
EMC Immunity Standard	IEC 61547

Vibration Standard	IEC68-2-6 F c
Bumps Standard	IEC 68-2-29 Eb
Humidity Standard	EN 61347-2-3 clause 11
Approval Marks	CE marking ENEC certificate VDE-EMV certificate
Temperature Marking	Not specified
Emergency Standard	IEC 60598-2-22
Hum And Noise Level	Inaudible

Product data

Full product code	871829117698500
Order product name	HF-R 218 PL-T/C EII 220-240V 50/60Hz
EAN/UPC - Product	8718291176985
Order code	913700680166

Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	12
Material Nr. (12NC)	913700680166
Net Weight (Piece)	0.230 kg
