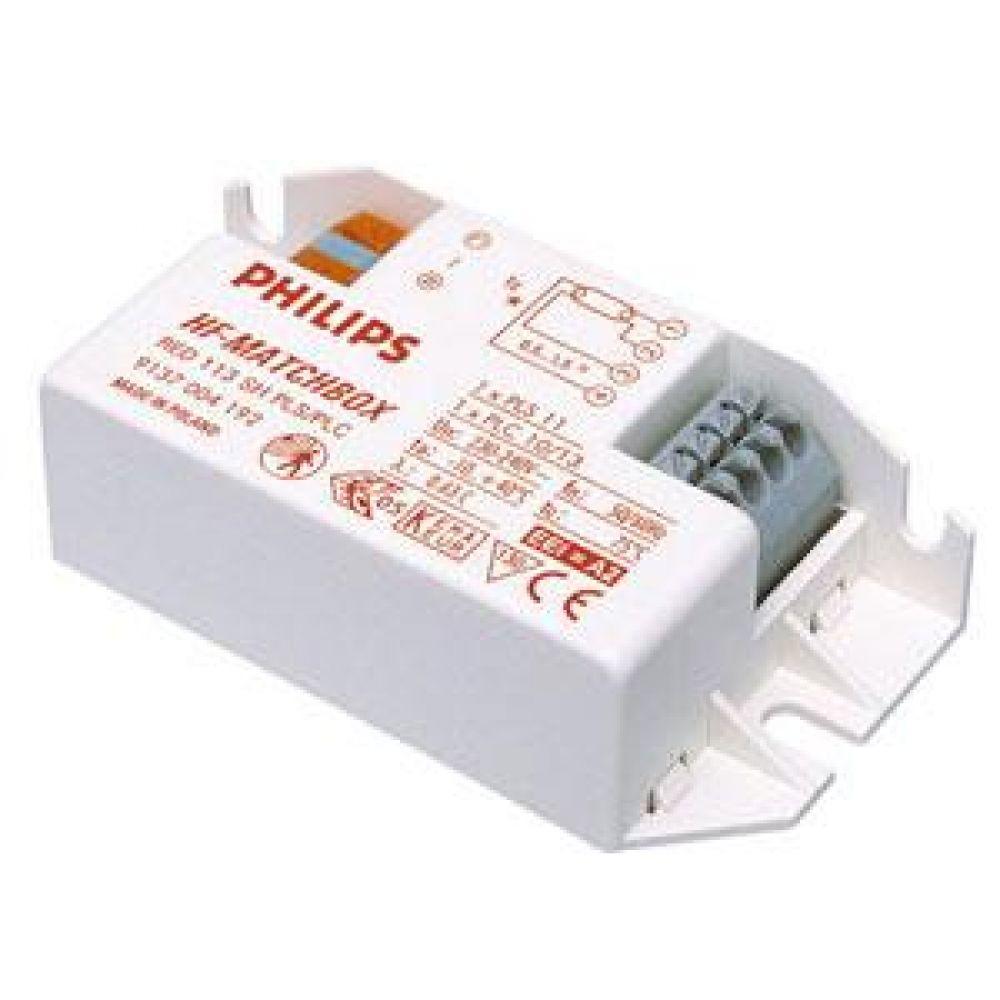

HF-M RED 124 SH TL/TL5/PL-L/PL-Q 230-240V

Specifications

General information

Remarks	UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Lamp type	TL/TL5/PL-L
Number of lamps	1 piece/unit

Number of products on MCB (16 A type B) (nom.)	48
Automatic restart	Yes

Operating and electrical

Input Voltage	230 to 240 V
Input frequency	50 to 60 Hz
Power factor 100% load (nom.)	0.61
Ignition time (max.)	0.92 s

Mains voltage performance (AC)	-8%-+6%
Mains voltage safety (AC)	-10%-+10%
Power losses (nom.)	2.9 W
Efficiency at full load [%]	87.22 %

Wiring

Connector type input terminals	Insert
Colour input terminals	Red
Colour output terminals	Grey
Connector type output terminals	Insert
Cable length from device to lamp	1.50 m

Cable length hot-wiring	0.30 m
Wire strip length	8.0-9.0 mm
Input terminal cross section	0.50-1.50 mm²
Output terminal cross section	0.50-1.50 mm²

System characteristics

Rated ballast-lamp power	24 W
Rated lamp power on PL-L	24 W
System power on PL-L	22.2 W
Lamp power on PL-L	19.3 W
Power loss on PL-L	2.9 W

Rated lamp power on TL5	24 W
System power on TL5	22.7 W
Lamp power on TL5	19.8 W
Power loss on TL5	2.9 W

Temperature

T-ambient (max.)	40 °C
T-ambient (min.)	-10 °C

T-Case maximum (max.)

75 °C

Mechanical and housing

Housing

SH

Emergency operation

Battery voltage lamp ignition

194-254 V

Approval and application

IP classification	IP 20  [ Ingress Protection 20]
Approval marks	F-Marking CE marking ENEC certificate CB Certificate

Product data

Full product code	871150091040030
Order product name	HF-M RED 124 SH TL/TL5/PL-L 230-240V
EAN/UPC – product	8711500910400
Order code	91040030
Local order code	HFMRED124SH

SAP numerator – quantity per pack	1
Numerator – packs per outer box	50
SAP material	913700420666
Net Weight (Piece)	0.041 kg
