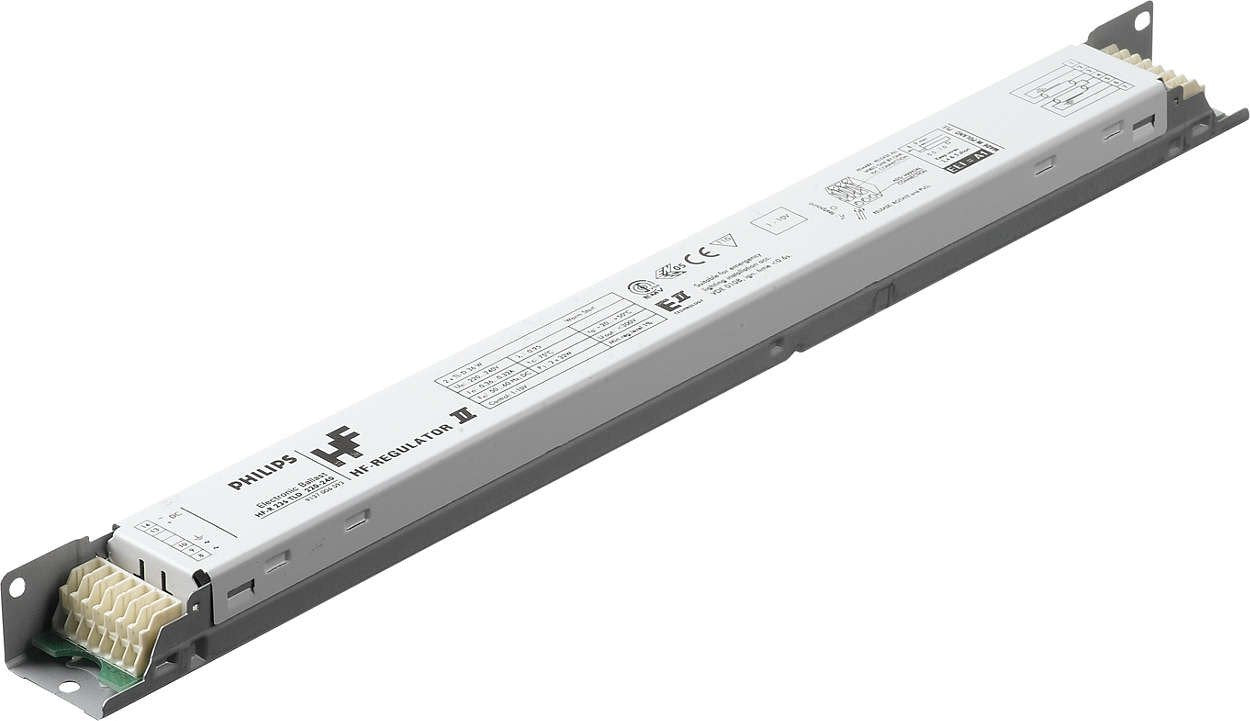

HF-R 236 TL-D EII 220-240V 50/60Hz


Price:
Sale price£44.78

Description

Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
EII
Type version
mk2
Lamp type
TL-D
Number of lamps
2 piece/unit
Number of products on MCB (16 A type B) (nom.)
12
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
89 kHz
Operating frequency (min.)
45 kHz
Ignition method
Programmed Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.98
Ignition time (max.)
0.2 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (max.)
0.5 mA
Inrush current width
0.40 ms
Power losses (nom.)
7.3 W
Inrush current peak (max.)
45 A
Efficiency at full load [%]
88.69 %
Wiring
Connector type input terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector type output terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Connector type control input terminals
WAGO 251 universal connector  [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Wire strip length
8.0-9.0 mm
Dual fixture master/slave
-  [ not specified]
Control input terminal cross section
0.50-1.00 mm²
Input terminal cross section
0.50-1.00 mm²
Output terminal cross section
0.50-1.00 mm²
Auto-insert (ALF/ADS) wire cross section
0.5 mm²
System characteristics
Rated ballast-lamp power
36 W

Temperature
T-ambient (max.)
50 °C
T-ambient (min.)
10 °C
T storage (max.)
80 °C
T storage (min.)
-25 °C
Stable lamp operation temperature
Not Specified
T-Ignition (max.)
50 °C
T-Ignition (min.)
0 °C
Controls and Dimming
Control interface
1-10V
Regulating level power
1%-100%
Control input protection
Yes (Basic insulation)
Mechanical and Housing
Housing
L 360x30x21

Emergency Operation
Battery voltage lamp ignition
196 V
Battery voltage lamp operation
154-276
Approval and Application
Energy efficiency index
A1 BAT
IP classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
EMI 30 MHz ... 1,000 MHz
EN55022 level B
Safety standard
IEC 61347-2-3
Performance standard
IEC 60929
Quality standard
ISO 9000:2000
Environmental standard
ISO 14001
Harmonic current emission standard
IEC 61000-3-2
EMC immunity standard
IEC 61547
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Humidity standard
EN 61347-2-3 clause 11
Approval marks

CE marking

ENEC certificate

VDE-EMV certificate

Temperature marking
Yes
Emergency standard
IEC 60598-2-22
Humming and noise level
Inaudible
Product Data
Full product code
871150091015830
Order product name
HF-R 236 TL-D EII 220-240V 50/60Hz
EAN/UPC – product
8711500910158
Order code
91015830
Local order code
HFR236TLDII
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700609366
SAP net weight (piece)
0.295 kg
