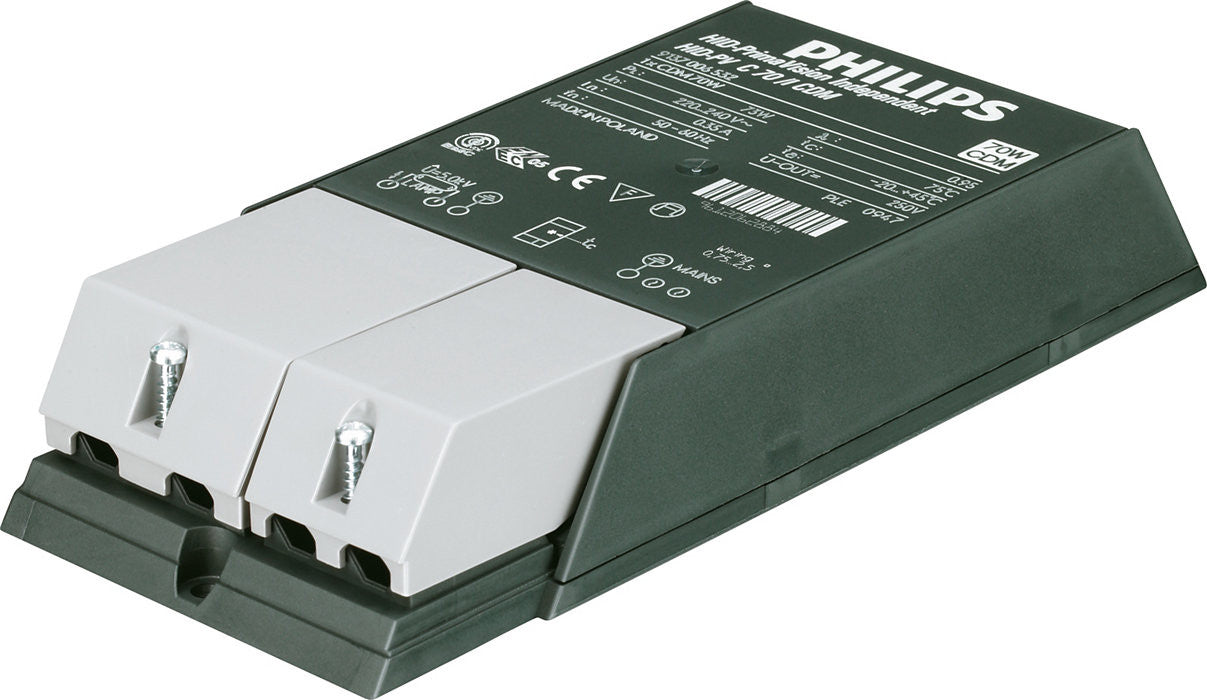

Philips HID-PV C 70 /I CDM Order code: 85988100

The Philips HID-PV C 70 /l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.

Full Product Code: 872790085988100

Specifications

General Information

Remarks	UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Type version	ng
Lamp type	CDM
Number of lamps	1 piece/unit

Suitable for outdoor use	No
Number of products on MCB (16 A type B) (nom.)	20
Automatic restart	Yes

Operating and Electrical

Input Voltage	220 to 240 V
Input frequency	50 to 60 Hz
Operating frequency (nom.)	0.14 kHz
Power factor 100% load (nom.)	0.95
Ignition voltage (max.)	4.0 kV
Ignition switch-off time (nom.)	18 min
Mains voltage performance (AC)	-10%-+6%

Mains voltage safety (AC)	-18%-+10%
Earth leakage current (max.)	0.25 mA
Inrush current width	0.33 ms
Constant wattage deviation	-3%/+3%
Power losses (nom.)	7.0 W
Inrush current peak (max.)	33 A

Wiring

Cable capacity output wires mutual (nom.)	150 pF
Cable length from device to lamp	2.0 m

Ballast contact wire cross section	0.50-2.50 mm²
Connector type	Insert

System characteristics

Rated ballast-lamp power

70 W

Temperature

T-ambient (max.)	45 °C
T-ambient (min.)	-20 °C
T storage (max.)	75 °C

T storage (min.)	-25 °C
T-case lifetime (nom.)	75 °C
T-Case maximum (max.)	75 °C

Mechanical and Housing

Housing

/I

Approval and Application

Active temperature protection	Yes
EMI 9 kHz ... 300 MHz	CISPR 15 ed 7.2
Safety standard	EN 61347-2-12
Quality standard	ISO 9000:2000
Environmental standard	ISO 14001
Harmonic current emission standard	EN 61000-3-2
EMC immunity standard	EN 61547

Vibration standard	IEC68-2-6 F c
Bumps standard	IEC 68-2-29 Eb
Humidity standard	IEC 928-13
Approval marks	CE marking ENEC certificate
Temperature marking	F
Humming and noise level	37 dB(A)

Product Data

Full product code	872790085988100
Order product name	HID-PV C 70 /I CDM 220-240V 50/60Hz NG
EAN/UPC – product	8711500881717
Order code	85988100
Local order code	PVC070ICDM

SAP numerator – quantity per pack	1
Numerator – packs per outer box	12
SAP material	913700653266
SAP net weight (piece)	0.360 kg
