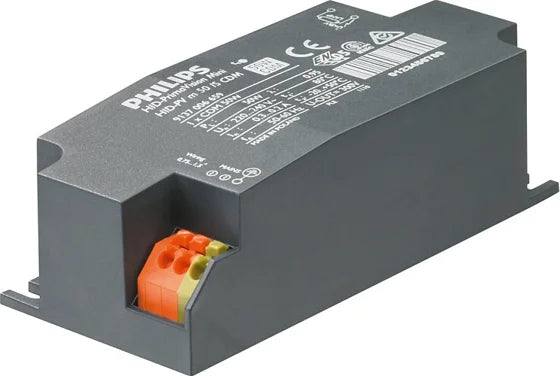

Philips HID - PrimaVision Compact Electronic Ballast for 35w CDM lamps - HIDPVM35S
Philips HID-PV m 35/S CDM HPF 220 – 230 V 50/60Hz
Specifications
- General Information
-
Remarks |
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
|
Application code |
HPF
|
Type version |
mk2
|
Lamp type |
CDM
|
Number of lamps |
1 piece/unit
|
Suitable for outdoor use |
No
|
Number of products on MCB (16 A type B) (nom.) |
24
|
Automatic restart |
Yes
|
- Operating and Electrical
-
Input Voltage |
220 to 240 V
|
Input frequency |
50 to 60 Hz
|
Minimum mains voltage operation (min.) |
198 V
|
Power factor 100% load (nom.) |
0.95
|
Ignition voltage (max.) |
4.5 kV
|
Ignition voltage (min.) |
3.3 kV
|
Ignition switch-off time (nom.) |
21 min
|
Mains voltage performance (AC) |
198-254V
|
Mains voltage safety (AC) |
180-264V
|
Earth leakage current (max.) |
0.5 mA
|
Inrush current width |
0.25 ms
|
Constant wattage deviation |
-3%/+3%
|
Power losses (nom.) |
5 W
|
Inrush current peak (max.) |
25 A
|
- Wiring
-
Cable capacity output wires mutual (nom.) |
50 pF
|
Cable length from device to lamp |
0.5 m
|
Wire strip length |
8.5-9.5 mm
|
Ballast contact wire cross section |
0.75-1.50 mm²
|
Connector type |
Insert
|
- System characteristics
-
Rated ballast-lamp power |
39 W
|
- Temperature
-
T-ambient (max.) |
50 °C
|
T-ambient (min.) |
-20 °C
|
T storage (max.) |
80 °C
|
T storage (min.) |
-25 °C
|
T-case lifetime (nom.) |
85 °C
|
T-Case maximum (max.) |
85 °C
|
- Mechanical and Housing
-
- Approval and Application
-
Active temperature protection |
Yes
|
EMI 9 kHz ... 300 MHz |
CISPR 15 ed 7.2 / 2009
|
Vibration standard |
IEC68-2-6 F c
|
Bumps standard |
IEC 68-2-29 Eb
|
Approval marks |
CE marking
ENEC certificate
VDE certificate
|
Humming and noise level |
< 25 dB(A)
|
- Product Data
-
Full product code |
871829167161900
|
Order product name |
HID-PV m 35 /S CDM 220-240V 50/60Hz
|
EAN/UPC – product |
8718291671619
|
Order code |
67161900
|
Local order code |
PVM35S
|
SAP numerator – quantity per pack |
1
|
Numerator – packs per outer box |
12
|
SAP material |
913700696166
|
SAP net weight (piece) |
0.115 kg
|
