PHILIPS - PVM35S-PH HID-PV m 35/S CDM HPF 220/240v 50/60hz


Price:
Sale price£31.45

Description

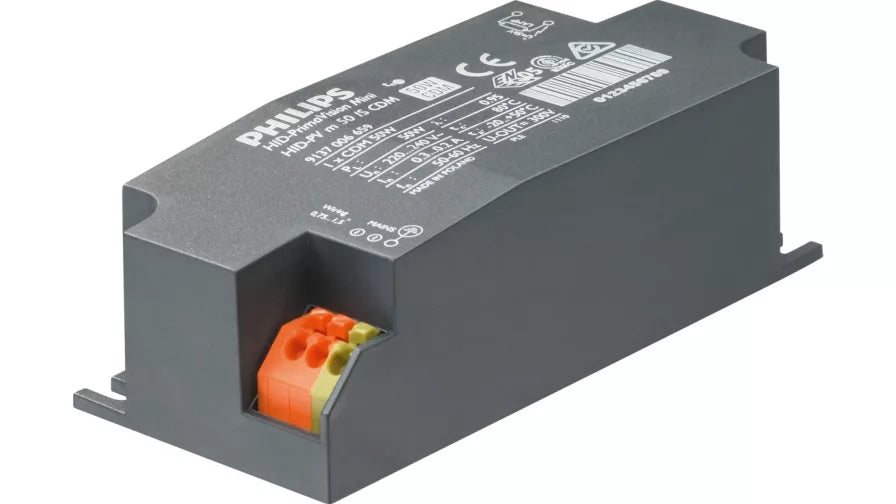

Philips HID - PrimaVision Compact Electronic Ballast for 35w CDM lamps - HIDPVM35S

Philips HID-PV m 35/S CDM HPF 220 – 230 V 50/60Hz



Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
HPF
Type version
mk2
Lamp type
CDM
Number of lamps
1 piece/unit
Suitable for outdoor use
No
Number of products on MCB (16 A type B) (nom.)
24
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Minimum mains voltage operation (min.)
198 V
Power factor 100% load (nom.)
0.95
Ignition voltage (max.)
4.5 kV
Ignition voltage (min.)
3.3 kV
Ignition switch-off time (nom.)
21 min
Mains voltage performance (AC)
198-254V
Mains voltage safety (AC)
180-264V
Earth leakage current (max.)
0.5 mA
Inrush current width
0.25 ms
Constant wattage deviation
-3%/+3%
Power losses (nom.)
5 W
Inrush current peak (max.)
25 A
Wiring
Cable capacity output wires mutual (nom.)
50 pF
Cable length from device to lamp
0.5 m
Wire strip length
8.5-9.5 mm
Ballast contact wire cross section
0.75-1.50 mm²
Connector type
Insert
System characteristics
Rated ballast-lamp power
39 W

Temperature
T-ambient (max.)
50 °C
T-ambient (min.)
-20 °C
T storage (max.)
80 °C
T storage (min.)
-25 °C
T-case lifetime (nom.)
85 °C
T-Case maximum (max.)
85 °C
Mechanical and Housing
Housing
/S

Approval and Application
Active temperature protection
Yes
EMI 9 kHz ... 300 MHz
CISPR 15 ed 7.2 / 2009
Vibration standard
IEC68-2-6 F c
Bumps standard
IEC 68-2-29 Eb
Approval marks

CE marking

ENEC certificate

VDE certificate

Humming and noise level
< 25 dB(A)
Product Data
Full product code
871829167161900
Order product name
HID-PV m 35 /S CDM 220-240V 50/60Hz
EAN/UPC – product
8718291671619
Order code
67161900
Local order code
PVM35S
SAP numerator – quantity per pack
1
Numerator – packs per outer box
12
SAP material
913700696166
SAP net weight (piece)
0.115 kg
