Philips ET-E 60 220-240V 50/60Hz


Price:
Sale price£13.95

Description

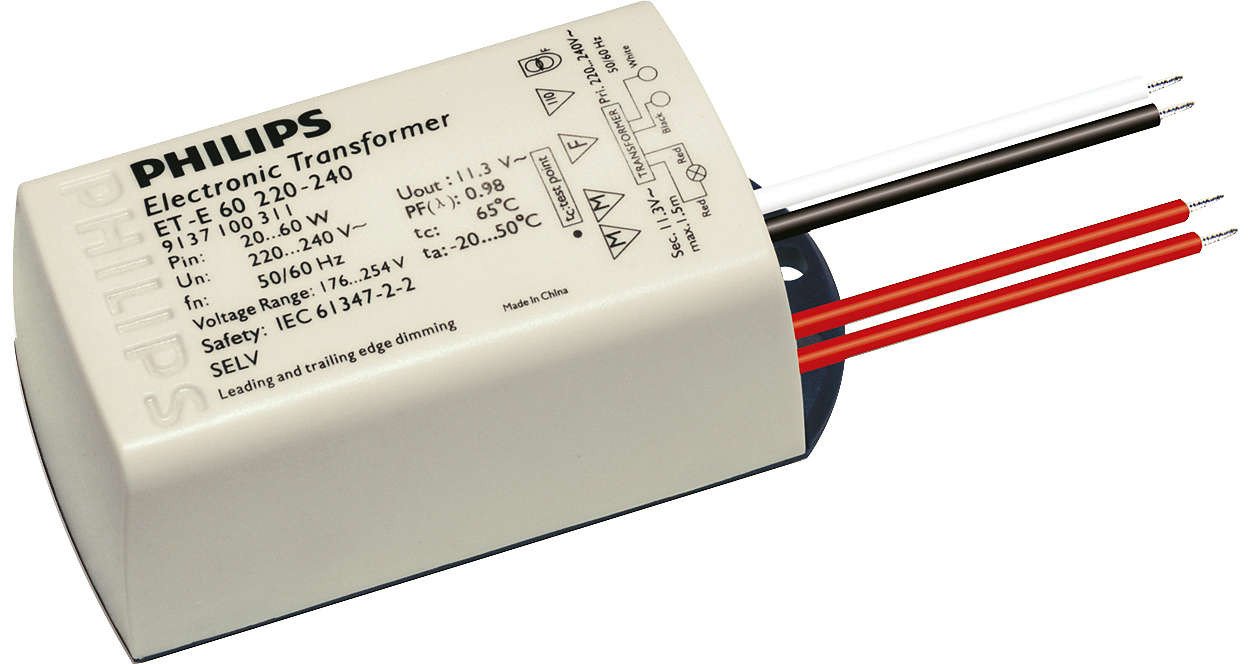

Philips ET-E 60 220-240V 50/60Hz HF Dimming electronic transformer for 12V halogen.

Specifications

General information
Type Version
-
Lamp Type
LV Halogen
Automatic Restart
Yes
Operating and electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Power Factor 100% Load (Nom)
0.9
Mains Voltage Performance (AC)
-10%-+10%
Mains Voltage Safety (AC)
-8%-+6%
Power Losses (Nom)
4 W
Inrush Current Peak (Max)
15 A
Output Voltage
- V
Wiring
Cable Capacity Wires Device to Lamp (Max)
120 nF
Cable Length From Device to Lamp
1.5 m
Wire Striplength
8.0-9.0 mm
Cable Capacity Output Wires to Earth (Max)
120 pF
System characteristics
Rated Ballast-Lamp Power
60 W

Temperature
T-Ambient (Max)
50 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Case Maximum (Max)
65 °C
Approval and application
Hum And Noise Level
< 30 dB(A)

Product data
Full product code
697013372901400
Order product name
ET-E 60 220-240V 50/60Hz
EAN/UPC - Product
6970133729014
Order code
913710031101
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
48
Material Nr. (12NC)
913710031101
Net Weight (Piece)
0.056 kg

Installation Diagrams

ET-E 60 220-240V 50/60Hz
ET-E 60 220-240V 50/60Hz
