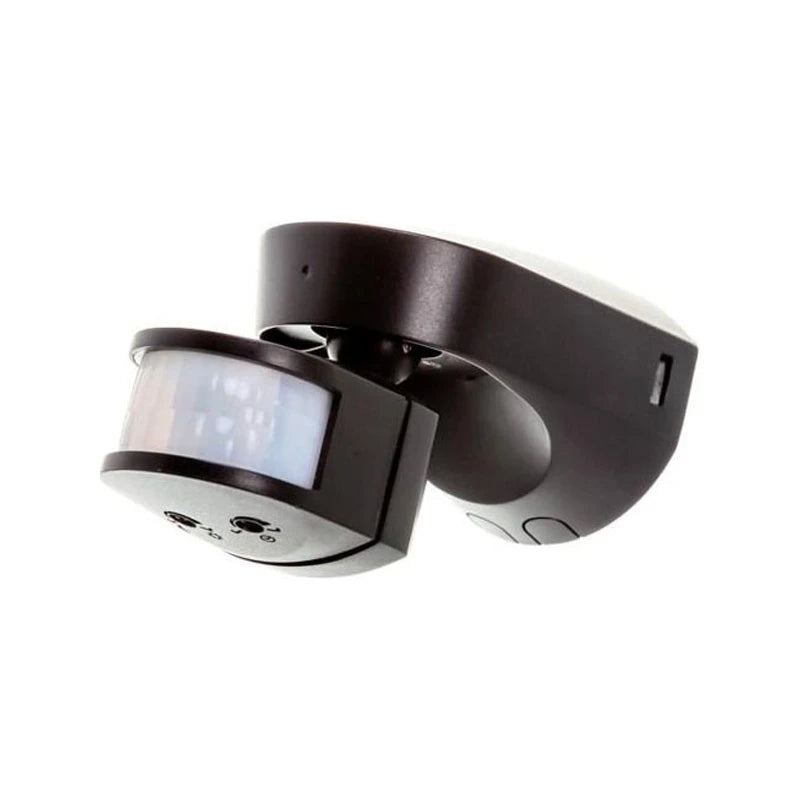

This is a PIR Light Controller for new and existing installations. Total PIR switching of 2300W incandescent/halogen, 500W fluorescent/low energy plus 250W LED. The 12m detection range with 180° area of detection, pan and tilt feature. It also features light-ON times adjustable from 5 seconds to 15 minutes. LUX (light level) adjustment - Day to Night (2 to 1000), manual ON/OFF switching override and simple and quick to fit terminal block connectors.
DOWNLOADS
Product Datasheet
- · ABS Housing
- · Total PIR switching of 2300W incandescent/halogen, 500W fluorescent/low energy plus 140W LED
- · Features light-ON times adjustable from 5 seconds to 15 minutes
- · 12m detection range with 180° area of detection
- · Pan and tilt feature
- · LUX (light level) adjustment - Day to Night (2 to 1000)
- · Manual ON/OFF switching override and simple and quick to fit terminal block connectors
- · For new and existing installations

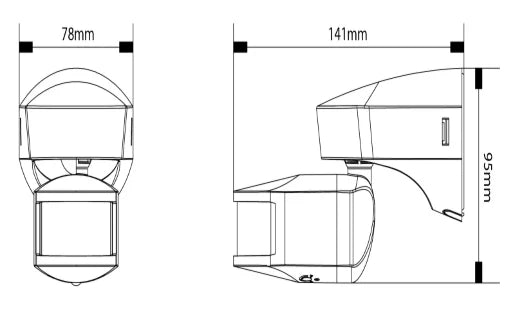

- · Dimensions: 95 x 78 x 141mm
- · Corner mounting bracket available – SLBCB
