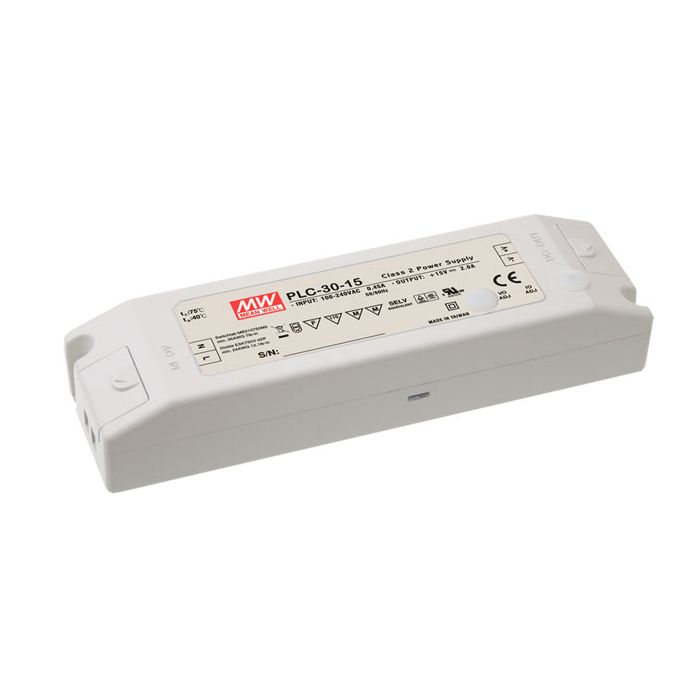

PLC-30-15 - Mean Well LED Driver PLC-30-15 30W 15V

MeanwellSKU: PLC-30-15

Price:
Sale price£35.50

Wattage:
Voltage:
EAN:

Manufacturer:


Built-in constant current limiting circuit (C.V. + C.C. mode)Protections: Short circuit/ Over current/ Over voltage/ Over temperatureOther features:Universal AC input / full rangeFully isolated plastic case with screw terminal style of I/OAdjustable output voltage and current levelBuilt-in active PFC function, PF>0.9 for 75% of load or higherHigh efficiency up to 90%Class 2 power unit / Pass LPSIsolation class II, no F.G.Cooling by free air convection100% full load burn-in test2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 30 Output Voltage 15V Dimmable (Type) No DC Output Adjustment 10.5~15V Dimensions 160 x 47 x 30 EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30 ~ +60°C (Refer to "Derating Curve") PDF Datasheet PLC-30-spec_2.pdf
