Wattage:
Voltage:
EAN:
Manufacturer:

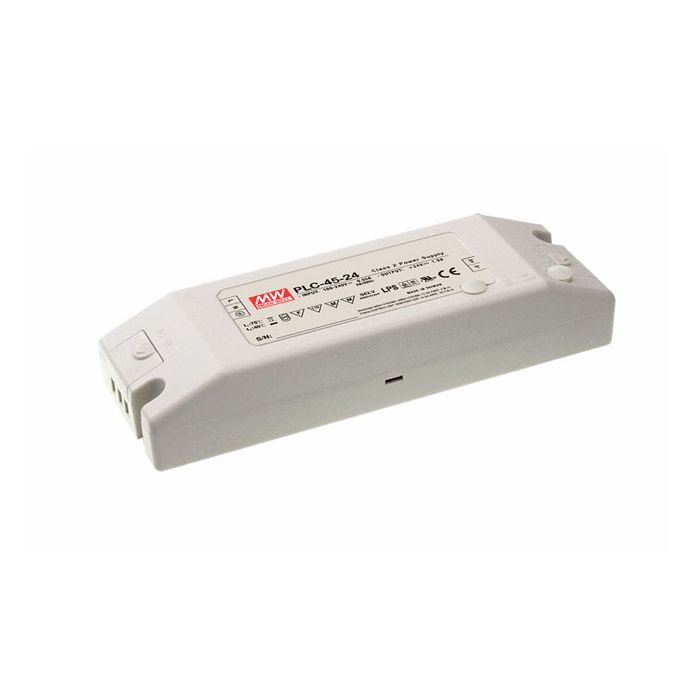

PLC-45-27 is an LED power supply with adjustable output voltage and current level and also has built-in constant current limiting circuitProtections: short circuit/ over load/ over voltage/ over temperatureOther features: Universal AC input / Full range, fully isolated plastic case with terminal block style of I/O, built-in active PFC function, comply with EN61000-3-2 class C ( ?75% load), UL1310 class 2 power unit, cooling by free air convection, 100% full load burn-in test, high reliability, suitable for LED lighting and moving sign applications, compliance to worldwide safety regulations for lighting and pass LPS?
More Information Manufacturer Mean Well Output Wattage (W) 45 Output Voltage 27V Dimmable (Type) No DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C PDF Datasheet PLC-45-SPEC.PDF
More Information Manufacturer Mean Well Output Wattage (W) 45 Output Voltage 27V Dimmable (Type) No DC Output Adjustment 95%~108% rated output voltage adjustable by internal potentiometer Dimensions 181 x 61.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~264VAC; 127~370VDC Safety Standards UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved Output Voltage Options Single Working Temperature -30~+50°C PDF Datasheet PLC-45-SPEC.PDF
