Description

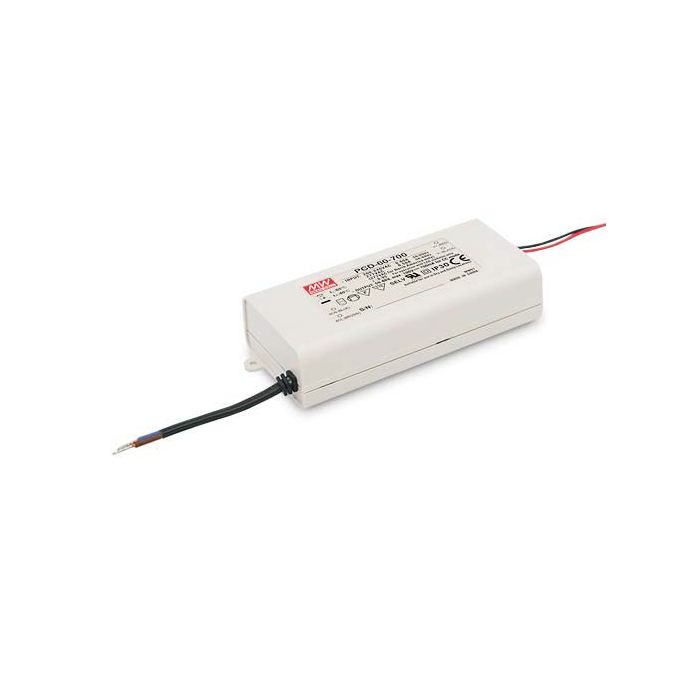

180~295VAC inputBuilt-in active PFC functionProtections: Short circuit/ Over temperatureOther features:Constant current designFully isolated plastic caseIP30 designClass 2 power unit/ Pass LPSIsolation class II, no F.G.100% full burn-in testCooling by free air convection3 years warranty More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Output Current
2000mA
Dimmable (Type)
No
DC Output Adjustment
18~30
Dimensions
128x 60x 31.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage
180~295VAC
Safety Standards
UL8750, CSA C22.2 No. 250.0-08(except for PCD-60-500~1750); ENEC EN61347-1, EN61347-2-13 independent, IP30 approved
Output Voltage Options
Single
Working Temperature
-30~+50°C
PDF Datasheet
PLD-60-spec_11.pdf
