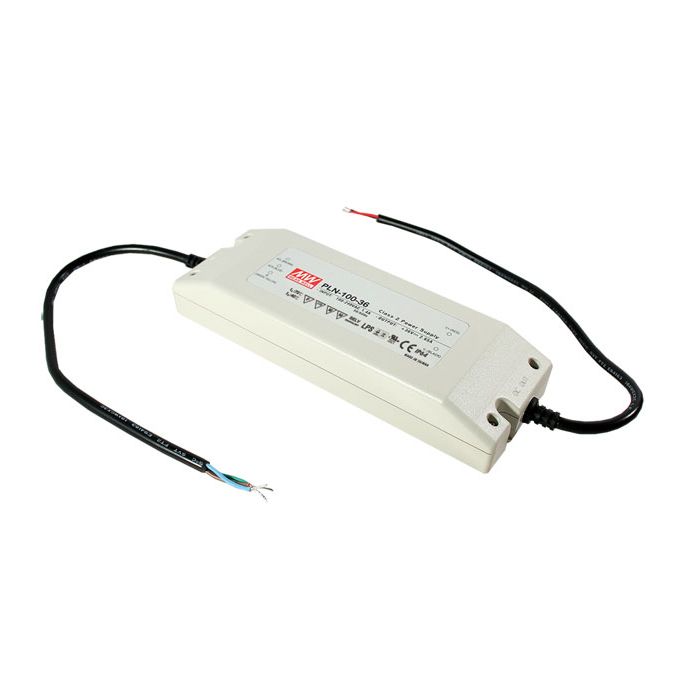

PLN-100-15 - Mean Well LED Driver PLN-100-15 100W 15V

Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input / Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit/ Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 100 Output Voltage 15V DC Output Adjustment 85%~100% rated output voltage Dimensions 200 x 70.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet PLN-100-SPEC.PDF
