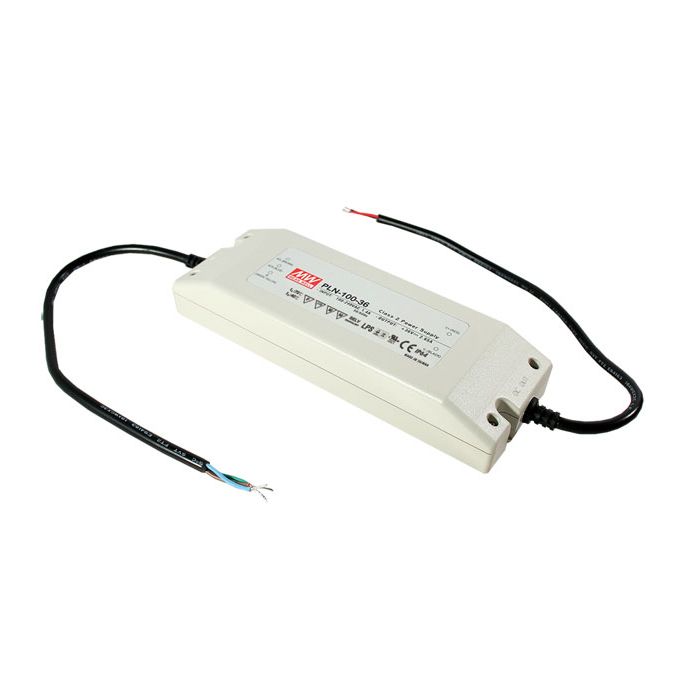

PLN-100-S - Mean Well PLN-100 Series LED Driver 100W 12V – 48V

Sale price£58.39


Built-in constant current limiting circuit (C.V. + C.C. mode)Fully isolated plastic case with IP64 levelProtections: Short circuit/ Overload/ Over voltage/ Over temperatureOther features: Universal AC input / Full RangeBuilt-in active PFC function, PF>0.9 for 75% of load or higherClass 2 power unit/ Pass LPSIsolation class II, no F.G.User adjustable output voltage and current protection levelCooling by free air convection2 years warranty
More Information Output Wattage (W) 100 Output Voltage Choose Option DC Output Adjustment 85%~100% rated output voltage Dimensions 200 x 70.5 x 35 EMC Standards EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C PDF Datasheet PLN-100-SPEC.PDF
