Description

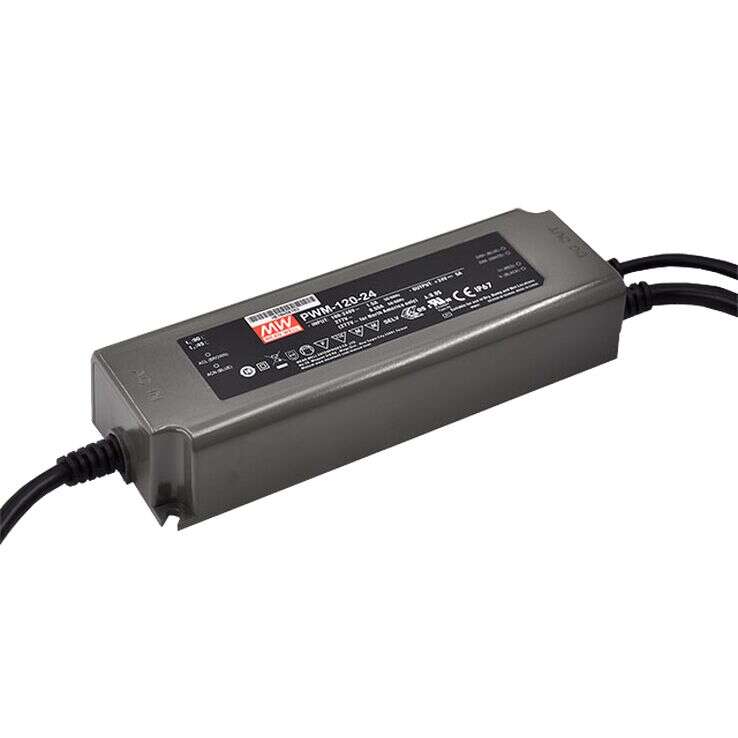

PWM-120-DA2 Series Features:
PWM-120 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.
Fully compatible with both DALI2 and DALI.
Features:
Constant voltage PWM style output
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
No load power consumption <0.5W/standby power consumption <0.5W(DA/DA2-type)
Fully encapsulated with IP67 level
Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
Minimum dimming level 0.2% for DALI type
Typical lifetime >50000 hours and 5 years warranty
Spec
PWM-120-12DA2
PWM-120-24DA2
Wattage
120
120
Input Voltage
90-305VAC, 127-431VDC
90-305VAC, 127-431VDC
Output Current
10A
5A
Output Voltage
12V
24V
Dimensions
191*63*37.5mm
150x 53x 35
Working Temperature
-40~+85°C
