Name: QT-FIT5 2X14…35 2 x 14W 28W 35W
Brand: Osram
SKU: qtfit521435-os
Price: 14.95 GBP
Availability: InStock

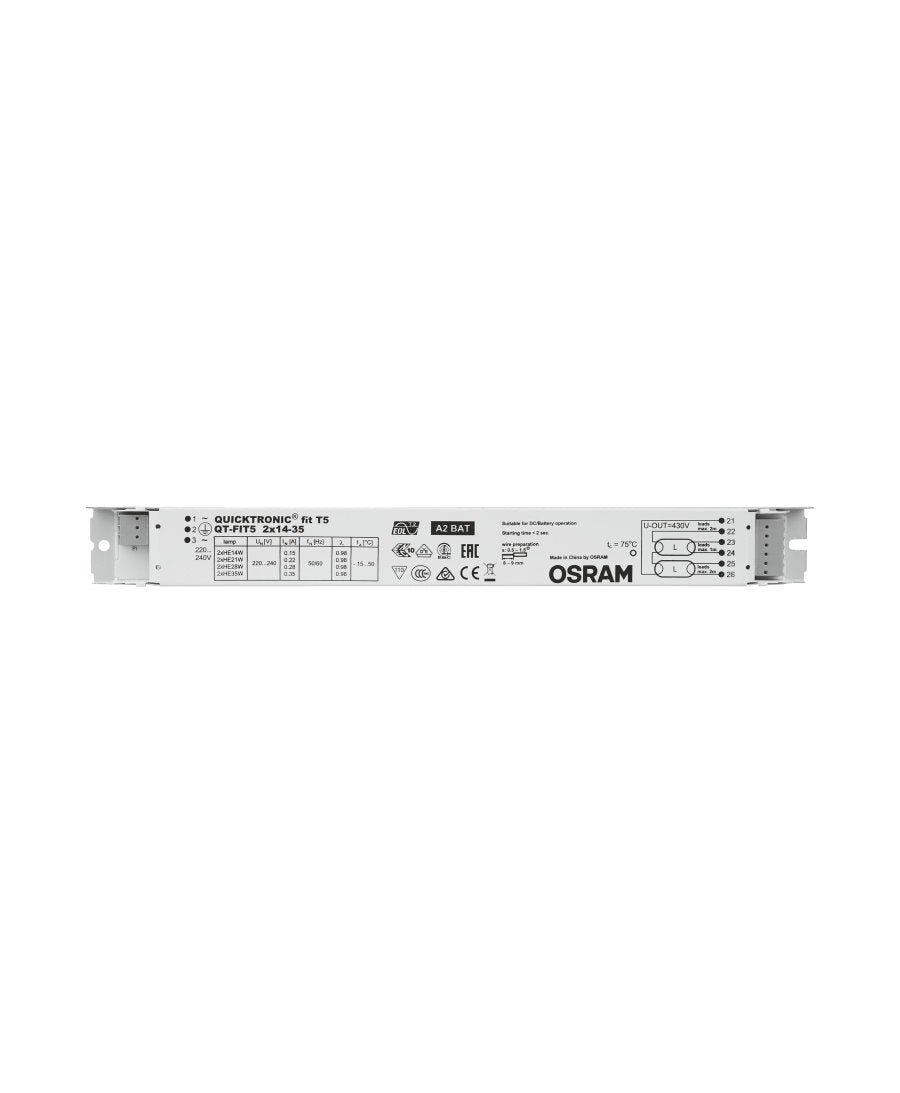

QT-FIT5 2X14…35 2 x 14W 28W 35W Electronic Ballasts Osram - Easy Control Gear

Roll over image to zoom in Click on image to zoom

Data sheet

Product family benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Open-plan offices, corridors and storage rooms
Public buildings
Strip lighting
Suitable for luminaires of protection class I
Modernization of existing systems

Technical Data

Electrical data

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

198…264 V

Maximum output power

2 x 35 W

Efficiency in full-load

91 %

Operating frequency

40…50 kHz

Light technical data

Starting time

2.0 s

Dimensions & weight

Length

280.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

270.0 mm

Product weight

181.00 g

Cable cross-section, output side

0.5…1.5 mm²

Cable cross-section, input side

0.5…1.5 mm²

Temperatures & operating conditions

Ambient temperature range

-15…+50 °C

Permitted rel. humidity during operation

5…85 %

Additional product data

Suitable for lamp power (2 lamps)

14…35 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for emergency lighting

Suitable for fixtures with prot. class

Max. cable length to lamp/LED module

2.0 m / 1.0 m

Dimmable

Intended for no-load operation

Certificates & standards

Approval marks – approval

VDE / ENEC 10 / VDE-EMC

EEI – Energy Label

A2 BAT

Standards

Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547

Type of protection

IP20

Protection class

Logistical data

Commodity code

850410809000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

14-03-2023

Primary Article Identifier

4008321971258

Candidate List Substance 1

No declarable substances contained

Declaration No. in SCIP database

No declarable substances contained

Packaging information

EAN	Unit	Piece	Dimension l x w x h	Weight
4008321971258	UNV	1	280mm x 30mm x 21mm	181.00g
4008321971265	VS	20	303mm x 101mm x 159mm	3786.00g

Downloads

Data sheets

Family data sheet

Data sheet

QUICKTRONIC QT FIT5

User instruction

Size: 1.7 MB

502688_ECG lifetime - QUICKTRONIC non DIM

Product Datasheet

Size: 232.6 kB

342812_QT-FIT5

Product Datasheet

Size: 279.9 kB

339586_VDE-Marks approval

Certificates

Size: 909.9 kB

339588_EMC-Marks approval

Certificates

Size: 977.1 kB

592319_EAC certificate for Quicktronics QT

Certificates

Size: 2.2 MB

683441_ENEC-Marks approvals

Certificates

Size: 642.2 kB

QUICKTRONIC CE 3364256 190821

Declarations of conformity

Size: 1.6 MB

339652_CAD QT-FIT5 3-DIM.x_t

CAD data 3-dim

Size: 294.1 kB

339657_CAD QT-FIT5 3-DIM.STEP

CAD data 3-dim

Size: 353.9 kB

339658_CAD QT-FIT5 3-DIM.IGS

CAD data 3-dim

Size: 511.9 kB

339600_CAD QT-FIT5

CAD data PDF

Size: 173.7 kB

QUICKTRONIC UK DoC 4314635 200821

Mandatory Publications

Size: 116.3 kB
