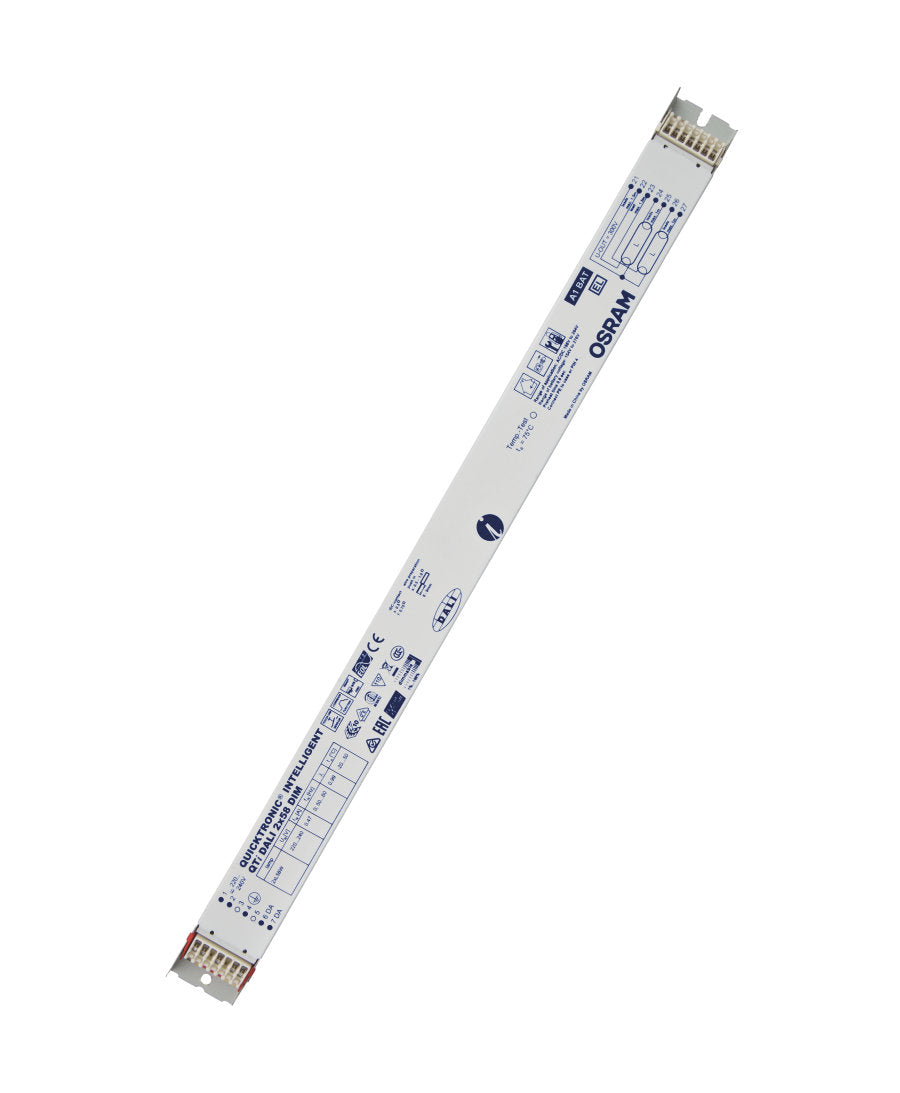

Name: QTi DALI 2X58 DIM 4050300870847
Brand: Osram Ledvance
SKU: QTIDALI258-OS
Price: 69.78 GBP
Availability: InStock

QTi DALI 2X58 DIM 4050300870847 Osram QTi Dimmable Ballasts Osram Ledvance - Easy Control Gear

Roll over image to zoom in Click on image to zoom

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Efficiency in full-load

93 %

Networked standby power

<0.25 W

Maximum output power

2 x 58 W

Operating frequency

46…120 kHz

Max. ECG no. on circuit breaker 10 A (B)

Max. ECG no. on circuit breaker 16 A (B)

Inrush current

45 A

Light technical data

Starting time

0.6 s

Dimensions & weight

Length

423.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

415.0 mm

Product weight

370.00 g

Cable cross-section, input side

0.5…1.5 / 0.5…1.0 mm²

Cable cross-section, output side

0.5…1.5 / 0.5…1.0 mm²

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

100000 h

Additional product data

Suitable for lamp power (2 lamps)

58 W

Capabilities

Dimming interface

DALI / Touch DIM / Touch DIM Sensor

Dimming range

1…100 %

Dimmable

Yes

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

Intended for no-load operation

Max. cable length to lamp/LED module

1.0 m / 1.5 m

Certificates & standards

Approval marks – approval

VDE / VDE-EMC / EL / EAC / RCM / CCC

Standards

Acc. to EN 55015; EN 55022/Acc. to EN 61547/Acc. to IEC 61000-3-2/EN 61000-3-2/Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1

Protection class

Type of protection

IP20

EEI – Energy Label

A1 BAT
