Description

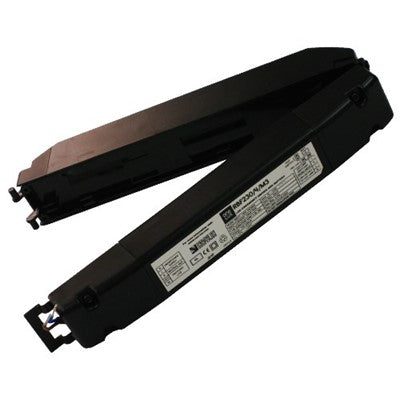

BF230/4/M3 is an effective solution for emergency conversion of luminaires using 230V LED lamps and arrays such as GU10s and linear tubes. The compact, articulated design contains an emergency driver with a re-chargeable battery and allows installation through a ceiling cut-out of just 55mm.
The removable end covers provide easy access for wiring or they can be supplied pre-wired with your custom cable assemblies for simple ‘plug-and-play’ convenience if required. The constant-power driver technology automatically adjusts to operate many available 230V LED lamps at an optimum power throughout the whole emergency duration. It has a built-in lamp change-over relay, which allows the product to be used for Maintained applications so making it easy to produce an emergency conversion of your existing LED luminaire* without the need for separate ‘emergency’ LEDs.
Features • Ideal for use with 230V LED GU10s, linear tubes, down lights etc.* • 3 hour operation using 4 x Nickel Metal Hydride (NiMH) high temperature cells. • Emergency output power (Typical): 4W for 4 cell version. • Higher power versions also available on request. • Green charge indicator LED with 750mm leads and bezel • Molded in black UL94_V0 rated Polycarbonate. • Driver complies with: EN61347-1, EN61347-2-7, EN55015, EN61000-3-2, EN61547 • C o nforms to EN60598-1 & EN60598-2-22 • Custom plug & socket connections available on request
Product Details
Order Code
81109
Brand
One-LUX
Voltage
70-250v
Wattage
3w
Overall Length
510 mm
Width
38 mm
Height
40 mm
Battery Required
4.8v - 4 Cell NiMH
Manufacturers Code
RBF230/4/M3
Manufacturers Description
OMNI-LED FLEXI 230V
More Product Details
For emergency conversion of 230V LED GU10’s, linear tubes, down lights etc.
More Product Details
Articulated design allows installation through a ceiling cut-out of just 55mm diameter
More Product Details
Removable end covers provide easy wiring access
