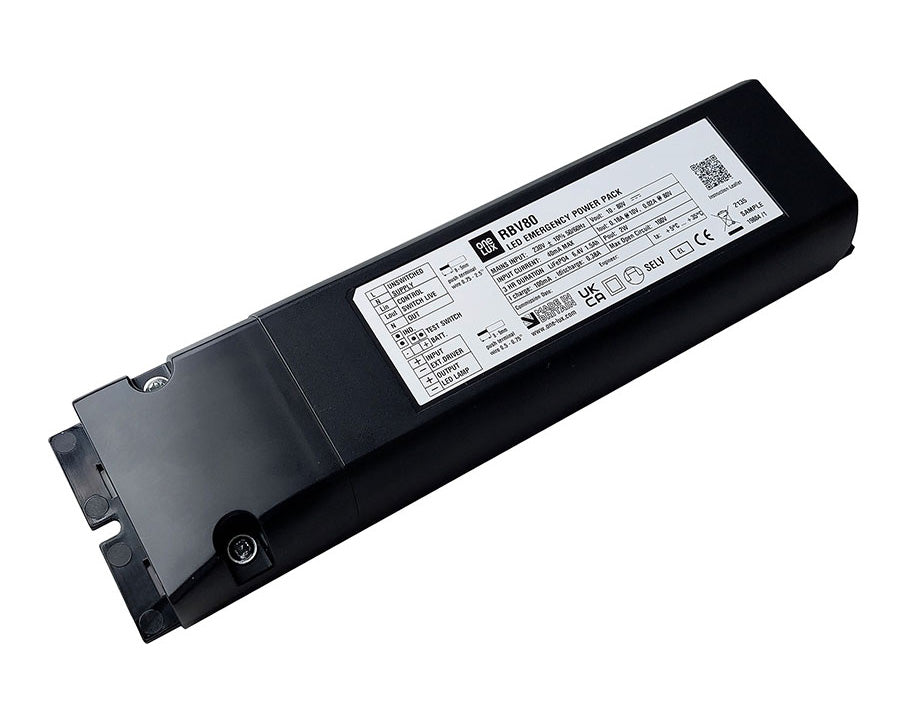

RBV/80 or RBV80/Plus 10-80V Lithium Remote Emergency Pack

LED Versatile RemoteM is an effective solution for emergency
conversion of luminaires using LED arrays. The compact, robust
housing is supplied containing our LED emergency driver,
re-chargeable LiFePO4 battery and connection terminals. A
removable end cover provides easy access for wiring and
its compact, low-profile design allows installation through a
ceiling cut-out of just 75mm diameter. This product offers an
emergency solution for a wide range of applications and can be
used with a separate mains driver for Maintained applications. It
is also available pre-wired with cable assemblies for simple ‘plug-
and-play’ convenience.
British designed and manufactured emergency driver technology
will run LED lamps or arrays from 10V – 80V, so making it easy
to convert your existing LED luminaire without the need for
separate ‘emergency’ LEDs or connectors

Features
> Ideal for use with LED panels or down-lights
> Emergency output power options (Typical): 2W - 4W
> Green charge indicator LED with 500mm leads and bezel (OB1)
> Suitable for use with solid or stranded cables 0.2-1.5mm²
> Molded in black UL94_V0 rated Polycarbonate
> Options for 3 pole full isolation of lamp & mains driver power
during emergency available.
> Driver complies with: EN61347-1, EN61347-2-7, EN55015,
EN61000-3-2, EN61547
> Conforms to EN60598-1 & EN60598-2-22
> Mating panel plug & socket connections available on request
> Supplied with an individual protective box and packed in an outer
carton of 10 pieces. (MOQ 10 pieces)
> Optional Self-Test functionality coming soon*
Common Technical Data
Input Supply Voltage 230V +/- 10%
Supply Frequency 50/60 Hz
LED Voltage Range 10 - 80V DC
Battery Type 1.6Ah, 3.6Ah 6.4V LiFePO4
Ambient Temperature Range 5 - 35°C
IP Rating IP20
Earth Leakage Current N/A
Weight 0.3kg(2W), 0.4kg(4W)
Dimensions (mm) 245(l) x 67(w) x 32(h)
Minimum Ceiling Cut-out Size 75mm Diameter
