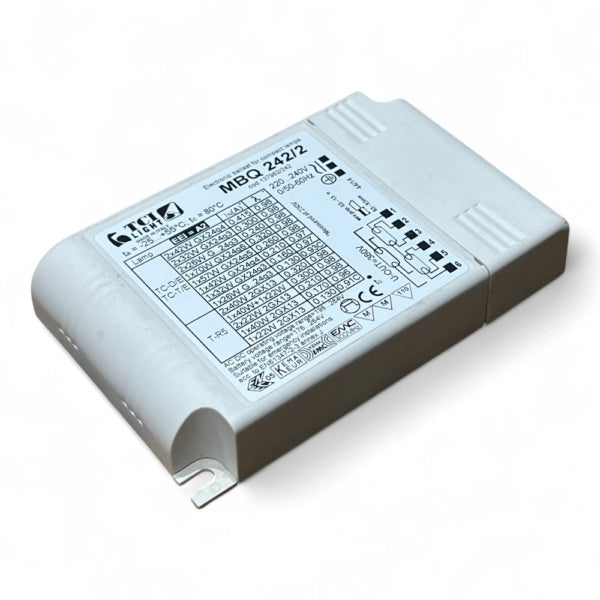

TCI MBQ 242/2

MBQ 242/2

HF non-dimmable ballast for 1/2×26 TC-D/E, 1/2×26-32 TC-T/E, 1/2×42 TC-T/E, 1×57 TC-T/E, 1×70 TC-T/E, 1×22+1×40 T-R5 & 1/2×22-40 T-R5 lamps for independent use.

Description

TCI MBQ 242/2

Multi-lamp and multi-power mini electronic ballasts for independent use

•IP20 independent electronic ballast for indoor use.
•It can be used for lighting equipment in protection class II.
•Suitable for connection to emergency equipment in compliance with EN 60598-2-22.
•Start with pre-heating to increase the life of the lamp.
•Push-wire connections (connector cross section area 0,5÷1,5 mm2).
•Supplied with terminal cover for retaining cables H03VVH2-F H05VVH2-F, suitable for independent use.
•Ballast can be secured with slots for screws.
•Protections:
– mains voltage spikes;
– disconnection of the lamp (restart with preheating);
– lamp failure;
– against partial rectification (EOL T.2), according to EN 61347-2-3 (par. 17.3);
– end of lamp life.
•Energy efficiency (EEI=A2)
