Description

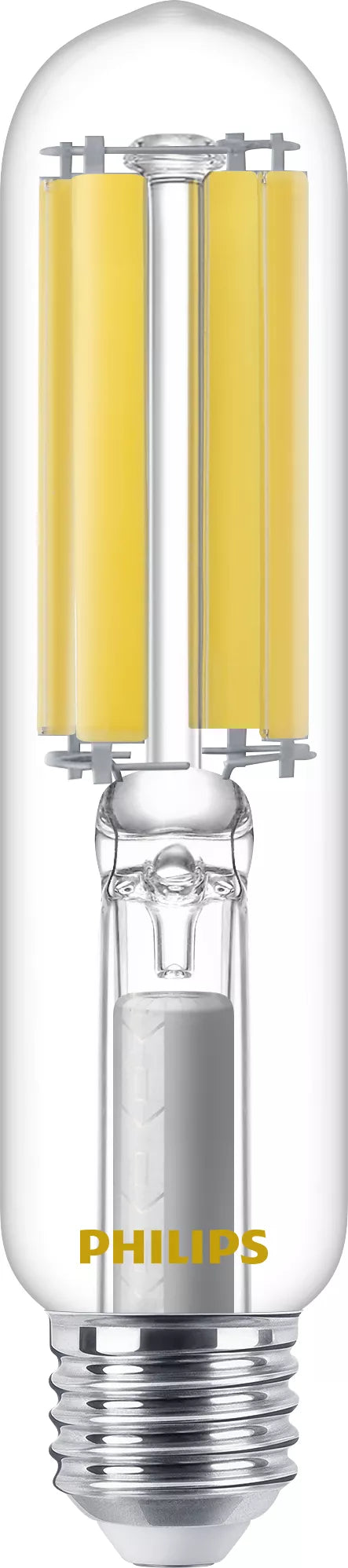

Trueforce Core LED SON-T TForce Core LED road 17W 730 E27 MV The new Philips Trueforce Core LED SON-T lamps offer you an easy, short-payback LED solution to replace High Intensity Discharge (HID) lamps. This new generation of products brings all the energy-efficiency and long-lifetime benefits of LED to HID replacement, while providing instant saving with a low initial investment. Furthermore, they’re designed to have the same lamp size and light distribution as other HID lamps, so you will never know the difference. All thanks to our HighPower LED filament technology. Plus, its unique IP65 design means it can be used for outdoor applications. Warnings and Safety • Please refer to the installation guide or consult a Philips Lighting representative for the wiring diagram and instructions. Product data General Information Cap base E27 Nominal lifetime 25,000 h Switching Cycle 15,000 Lighting Technology LED Flux measurement reference Sphere CE mark Yes EU RoHS compliant Yes
Light Technical Colour Code 730 [CCT of 3000K] Luminous Flux 2,800 lm Colour designation White (WH) Correlated Colour Temperature 3000 K Luminous efficacy (rated) (nom.) 164.00 lm/W Colour consistency <6 Colour rendering index (CRI) 70 LLMF at end of nominal lifetime (nom.) 70 % Flickering value (PstLM) 1 Stroboscopic effect 3.3 Photobiological safety according to EN 62471 RG1
Operating and Electrical Line Frequency 50 to 60 Hz Input frequency 50 to 60 Hz Power Consumption 17 W Lamp current (nom.) 80 mA Starting time (nom.) 0.5 s Datasheet, 2023, April 15 data subject to change Lighting Lighting Warm-up time to 60% light 0.5 s Power Factor (Fraction) 0.9 Voltage (nom.) 220-240 V Inrush current at mains 10.1 Max. lamp no. on MCB B type 10A — Mains 9 Max. lamp no. on MCB B type 10A — EM ballast without Comp. Cap. - Max. lamp no. on MCB B type 10A — EM ballast with Comp. Cap. - Max. lamp no. on MCB B type 16A — Mains 14 Max. lamp no. on MCB B type 16A — EM ballast without Comp. Cap. - Max. lamp no. on MCB B type 16A — EM ballast with Comp. Cap. - Ballast Compatibility Mains
Temperature Ambient temperature range -30 to +45 °C T-Case maximum (nom.) 29.7 °C
Controls and Dimming Dimmable No
Mechanical and Housing Lamp Finish Clear Bulb shape T-shape
Approval and Application Energy Efficiency Class C Energy consumption kWh/1,000 hours 17 kWh EPREL registration number 1641604
Product Data Order product name TForce Core LED road 17W 730 E27 MV Full product name TForce Core LED road 17W 730 E27 MV Full EOC 871951431625600 Order code 31625600 Material no. (12 NC) 929002484802 SAP numerator – quantity per pack 1 EAN/UPC — Product/Case 8719514316256 Numerator – packs per outer box 6 EAN/UPC - Case 8719514316263 Dimensional drawing D C Product D C TForce Core LED road 17W 730 E27 MV 38 mm 170 mm
