Trueforce Core LED
SON-T

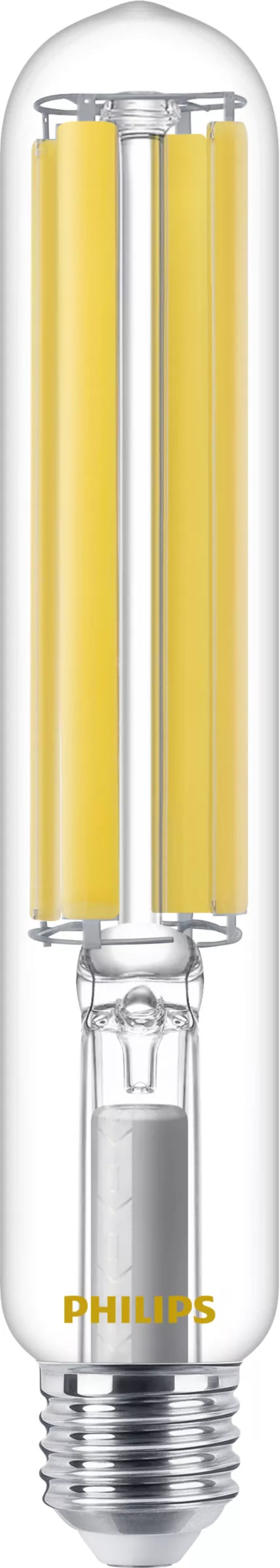

TForce Core LED road 26W 740 E27 MV
The new Philips Trueforce Core LED SON-T lamps offer you an easy, short-payback
LED solution to replace High Intensity Discharge (HID) lamps. This new generation of
products brings all the energy-efficiency and long-lifetime benefits of LED to HID
replacement, while providing instant saving with a low initial investment.
Furthermore, they’re designed to have the same lamp size and light distribution as
other HID lamps, so you will never know the difference. All thanks to our HighPower LED filament technology. Plus, its unique IP65 design means it can be used
for outdoor applications.
Warnings and Safety
• Please refer to the installation guide or consult a Philips Lighting representative for the wiring diagram and instructions.
Product data
General Information
Cap base E27
Nominal lifetime 25,000 h
Switching Cycle 15,000
Lighting Technology LED
Flux measurement reference Sphere
CE mark Yes
EU RoHS compliant Yes
Light Technical
Colour Code 740 [CCT of 4000K]
Luminous Flux 4,500 lm
Colour designation Cool White (CW)
Correlated Colour Temperature 4000 K
Luminous efficacy (rated) (nom.) 173.00 lm/W
Colour consistency <6
Colour rendering index (CRI) 70
LLMF at end of nominal lifetime (nom.) 70 %
Flickering value (PstLM) 1
Stroboscopic effect 4
Photobiological safety according to EN 62471 RG1
Operating and Electrical
Line Frequency 50 to 60 Hz
Input frequency 50 to 60 Hz
Power Consumption 26 W
Lamp current (nom.) 120 mA
Starting time (nom.) 0.5 s
Datasheet, 2023, April 15 data subject to change
Lighting Lighting
Warm-up time to 60% light 0.5 s
Power Factor (Fraction) 0.9
Voltage (nom.) 220-240 V
Inrush current at mains 10.1
Max. lamp no. on MCB B type 10A — Mains 9
Max. lamp no. on MCB B type 10A — EM ballast
without Comp. Cap.
-
Max. lamp no. on MCB B type 10A — EM ballast
with Comp. Cap.
-
Max. lamp no. on MCB B type 16A — Mains 14
Max. lamp no. on MCB B type 16A — EM ballast
without Comp. Cap.
-
Max. lamp no. on MCB B type 16A — EM ballast
with Comp. Cap.
-
Ballast Compatibility Mains
Temperature
Ambient temperature range -30 to +45 °C
T-Case maximum (nom.) 38.7 °C
Controls and Dimming
Dimmable No
Mechanical and Housing
Lamp Finish Clear
Bulb shape T-shape
Approval and Application
Energy Efficiency Class C
Energy consumption kWh/1,000 hours 26 kWh
EPREL registration number 1641607
Product Data
Order product name TForce Core LED road 26W 740
E27 MV
Full product name TForce Core LED road 26W 740
E27 MV
Full EOC 871951431631700
Order code 31631700
Material no. (12 NC) 929002485102
SAP numerator – quantity per pack 1
EAN/UPC — Product/Case 8719514316317
Numerator – packs per outer box 6
EAN/UPC - Case 8719514316324
Dimensional drawing
D
C
Product D C
TForce Core LED road 26W 740 E27 MV 38 mm 210 mm
Trueforce Core LED SON-T
Datasheet, 2023, April 15 2 data subject to change
Photometric data
200 300 400 500 600
0
40
80
20
60
700 800
100
[nm]
Intensity (%)
Spectral Power Distribution Colour - TForce Core LED road 26W 740 E27 MV Light Distribution Diagram - TForce Core LED road 26W 740 E27 MV
General uniform lighting - TForce Core LED road 26W 740 E27 MV
Lifetime
Failure rate in %
0
60
40
20
80
100
0 5000 10000 15000 25000 35000 20000 30000
Time (hours)
40000
Life Expectancy Diagram - TForce Core LED road 26W 740 E27 MV
Lumen in %
50
60
70
80
90
100
0 10000 20000
Burning hours
30000 50000 40000 60000
Lumen Maintenance Diagram - TForce Core LED road 26W 740 E27 MV
Trueforce Core LED SON-T
Datasheet, 2023, April 15 3 data subject to change
