Wattage:50W maximum
Voltage: 220-240V AC
EAN: 9006210522593
Manufacturer: Tridonic

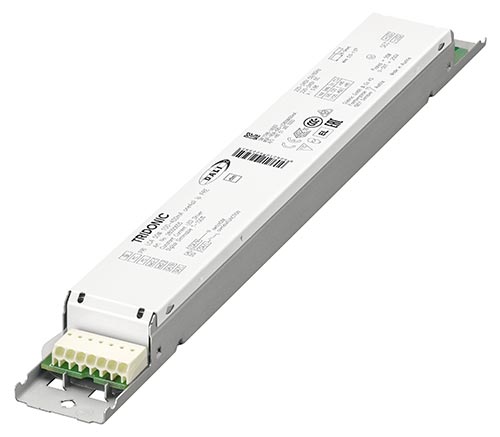

The Tridonic 28000655 LCA 50W 100-400mA one4all lp PRE is a low-profile, constant-current LED driver for linear and area lighting. It supports DALI-2, DSI, switchDIM and corridorFUNCTION, with an adjustable output current of 100-400mA.
Key specifications
- Maximum output power: 50W, depending on the selected current and LED load
- Supply: 220-240V AC
- Output current: adjustable from 100 to 400mA
- Output voltage: 50-140V DC; the permitted maximum depends on the selected current
- Dimming range: 1-100%
- Dimensions: 280 x 30 x 21mm; fixing centres: 270mm
- IP20 metal housing; non-SELV output
- Manufacturer's 5-year guarantee, subject to its conditions
Choosing and setting the driver
Match the LED module's required current and voltage to the operating window in the datasheet before fitting. This is a constant-current driver, not a 12V or 24V constant-voltage LED-strip power supply. The output current can be set using DALI, ready2mains or an I-SELECT 2 resistor. Installation and current setting should be carried out by a qualified person.
Tridonic currently marks article 28000655 as "Phase out". This page is for the original article; no replacement is being substituted.
