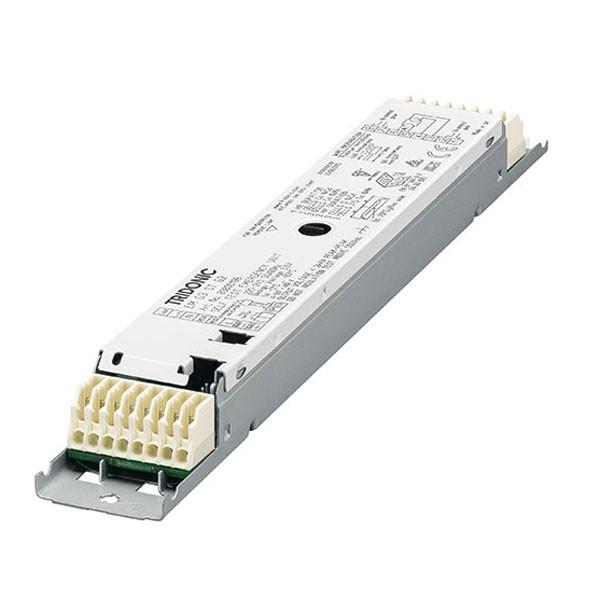

Non-maintained Emergency Lighting Supply Unit with manual testing, compatible with all electronic ballasts (dimmable and non-dimmable). It is designed with 5-pole technology, 4-pole lamp changeover and delayed power switching for the ballast. It offers high-frequency AC operation of the lamp. Designed with power control technology, ensures maximum emergency ballast lumen factors (EBLF) for all lamps. It gives gentle on the lamp thanks to preheated lamp start and permanent cathode heating in emergency mode. It has 5.5 min boost start for rapid heating of the lamp, more light in the start-up phase and optimum lamp life. This unit comes with electronic multi-level charge system and “rest mode” function. It features deep discharge protection, very low energy consumption from the battery after activation of the deep discharge protection, short-circuit-proof battery connection and polarity reversal protection for battery.
- · 1 or 3 Hour rated duration
- · Requires high temperature NiCd D-Cell batteries
- · 4-Year design life
- · Min/Max ambient working temperature: -5°C to 60°C
- · Degree of protection: IP20
- · Rated supply voltage: 220-240V (Frequency - 50/60Hz)
