Wattage:
Voltage:
EAN:
Manufacturer:
We only have the slimline version of this item left now or different brands in the same style
Alternatives Same Size Shape and ratings
Alternatives Same Size Shape and ratings
Alternative Same item but slimline variant
Product Details
High frequency digital ballast in a compact matchbox form factor for single lamp operation. Automatic start after replacement of defective lamps. Safety shutdown of defective lamps and at end of lamp life.
- · Suitable for single lamp operation
- · Runs 28w TC-DD, 26w TC-D and TC-T lamps
- · 5 year guarantee
- · IP20
- · 50,000hr life

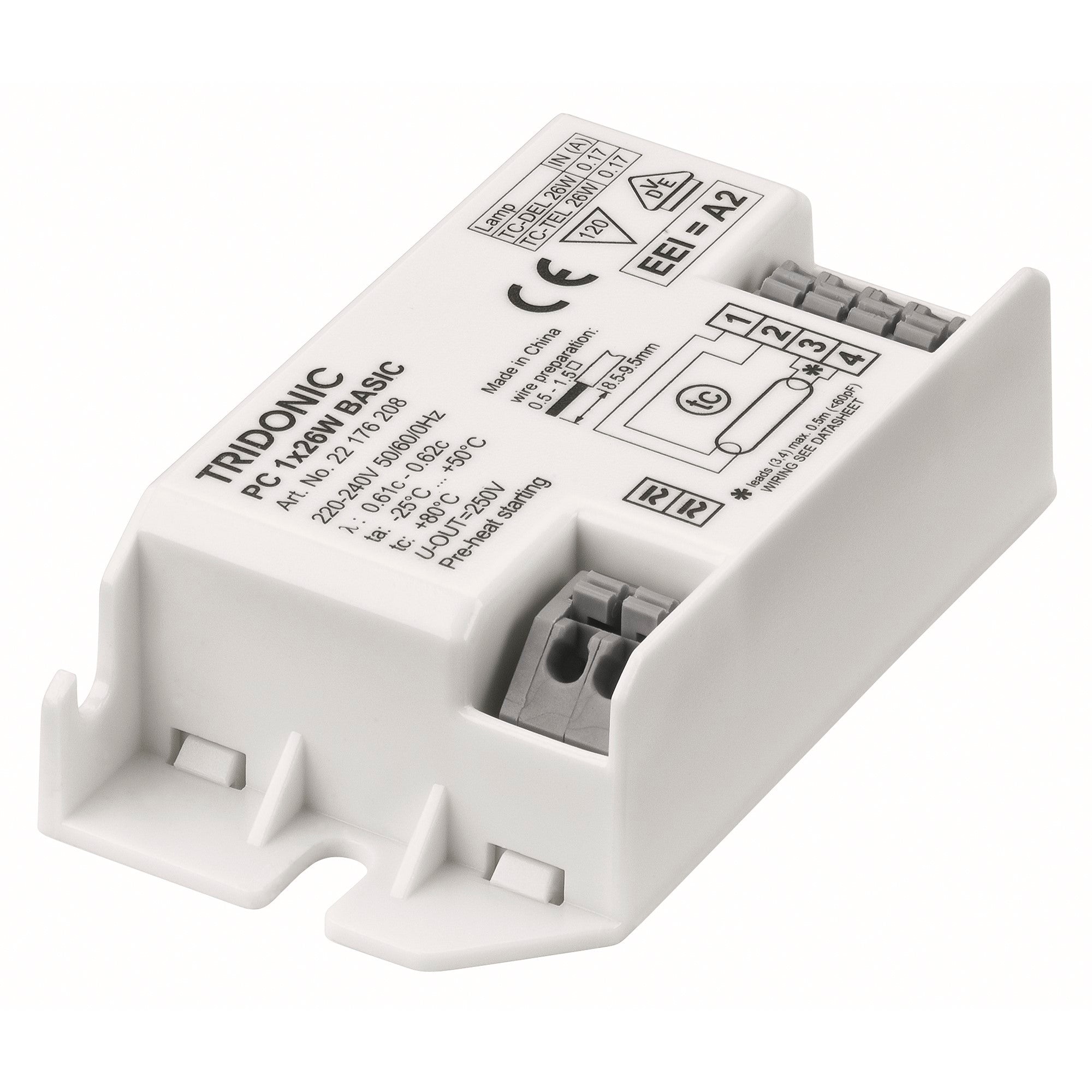

Tridonic PC Square Basic High Frequency Ballast 1 x 26w from Tridonic
Model: 22176208
An 18 Watt Square High Frequency Ballast from Tridonic Lighting designed to operate 1Single T5, 2D and PLT/PLC Fluorescent Lamps. Features for this non-dimmable gear include 25,000 starts, automatic shutdown at end of life, noise-free operation, low energy consumption and a 50,000 hour lifespan.
Technical Specifications
| Control Gear Type | High Frequency |
|---|---|
| Accessory Type | Ballast |
| Wattage | 28 W |
| Manufacturer | Tridonic |
| Dimming? | Non-Dimmable |
| No. Of Lamps | Single (1x) |
| Depth | 21 mm |
| Lamp | PL-C: 26w PLT: 26w 2D: 28w |
| Length | 80 mm |
| Type | Control Gear |
| Width | 40 mm |
| Compatible Lamp Type | PLT (4 Pin) |
| Compatible Lamp Type | T5 |
| Compatible Lamp Type | 2D (4 Pin) |
| Control Gear Technology | Fluorescent |
| Manufacturers Part Number | 22176208 |
