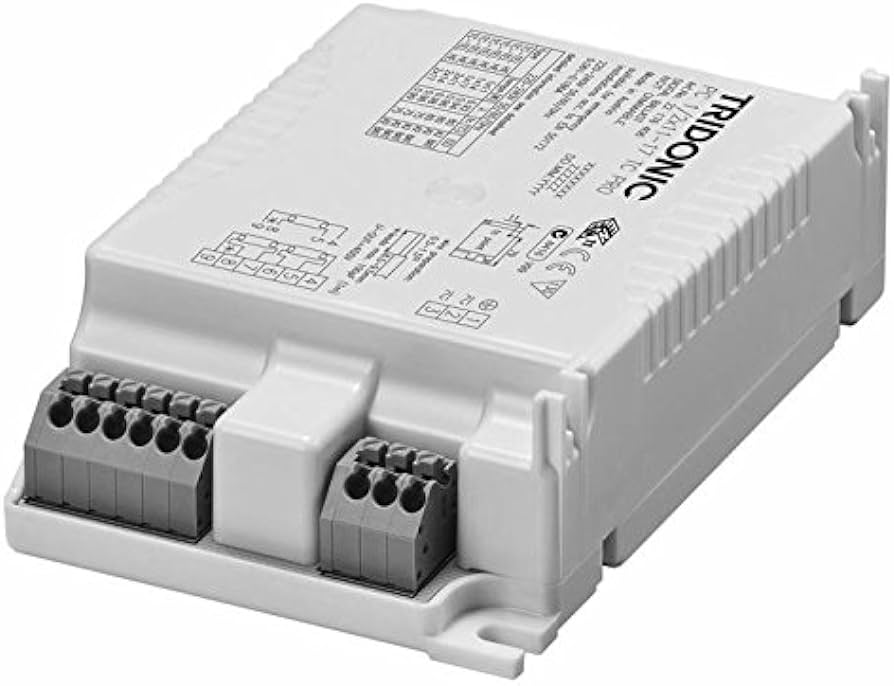

Tridonic TC Pro High Frequency Ballast 1/2 x 9-13w from Tridonic
Model: PC 1/2x9-13 TC PRO
This Compact Tridonic ballast unit features:
- CELMA Energy Efficiency Index A2 BAT / A2
- Nominal life time up to 50,000 h (at ta 50 °C with a failure rate max. 0.2 % per 1,000 h)
- Large temperature range
- Devices can operate either 1 or 2 lamps
- Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
- Constant luminous flux irrespective of fluctuations in mains voltage
- For luminaires of protection class I and protection class II
- Automatic start after replacement of defective lamps
- Safety shutdown of defective lamps and at end of lamp life (EOL 2)
- For emergency lighting systems as per EN 50172
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-3 C5e
Technical Specifications
Control Gear Type |
High Frequency |
Accessory Type |
Ballast |
Wattage |
10 W |
Wattage |
13 W |
Wattage |
9 W |
Wattage |
11 W |
Manufacturer |
Tridonic |
Dimming? |
Non-Dimmable |
No. Of Lamps |
Single (1x) |
No. Of Lamps |
Twin (2x) |
Depth |
30 mm |
Lamp |
1/2 x 9-13 Watt |
Length |
103 mm |
Type |
Control Gear |
Width |
67 mm |
Compatible Lamp Type |
PLT (4 Pin) |
Compatible Lamp Type |
2D (4 Pin) |
Compatible Lamp Type |
PLS (4 Pin) |
Control Gear Technology |
Fluorescent |
Manufacturers Part Number |
22176405 |
