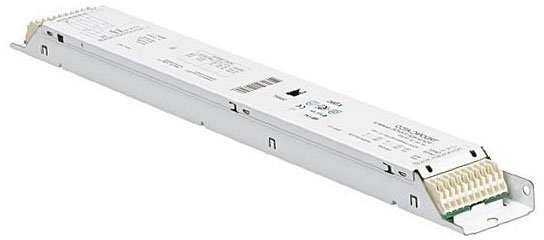

TRIDONIC - PCA21424T5ECO-TR 2X14/24w T5 lp Digital Dimming Ballast


Price:
Sale price£28.00

Description

Digital Dimming Ballast to run 2 X 14/24w T5 tubes - PCA 2x14/24 T5 ECO - 22185095



Product Details

Processor-Controlled Electronic Ballast with xitec II inside and highest possible energy class CELMA EEI A1 BAT. Ballast offers noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION as well as Multilamp management. Intelligent temperature guard, intelligent voltage guard, optimum filament heating in any dimmer setting. It features disconnection of filament heating from a dimming level of approximately 90% for maximum energy efficiency corridorFUNCTION with ambient light control, automatically triggered emergency lighting value in DC mode 15%, for emergency lighting systems as per EN 50172, automatic start after replacement of defective lamps and automatic shutdown if the lamp is faulty.

  • · Dimming capability (1-100% range)
  • · Rated lifespan: 100,000 hours
  • · Flicker free warm start
  • · Min/Max ambient working temperature: -25°C to 70°C
  • · Degree of protection: IP20
  • · Operating voltage: 198-264V (AC), 176-280V (DC)
  • · Dimensions: 360x30x21mm (LxWxH)
  • · CE Approved

Technical Specifications

Ballast
Model Electronic
Suitable for number of lamps 2
Nominal voltage 220 - 240 V
Suitable for lamp power 14 W
Width 30 mm

Height 21 mm
Length 360 mm
Suitable for lamp type T5
Dimming Type DALI
Dimmable Yes
