Wattage:
Voltage:
EAN:
Manufacturer:

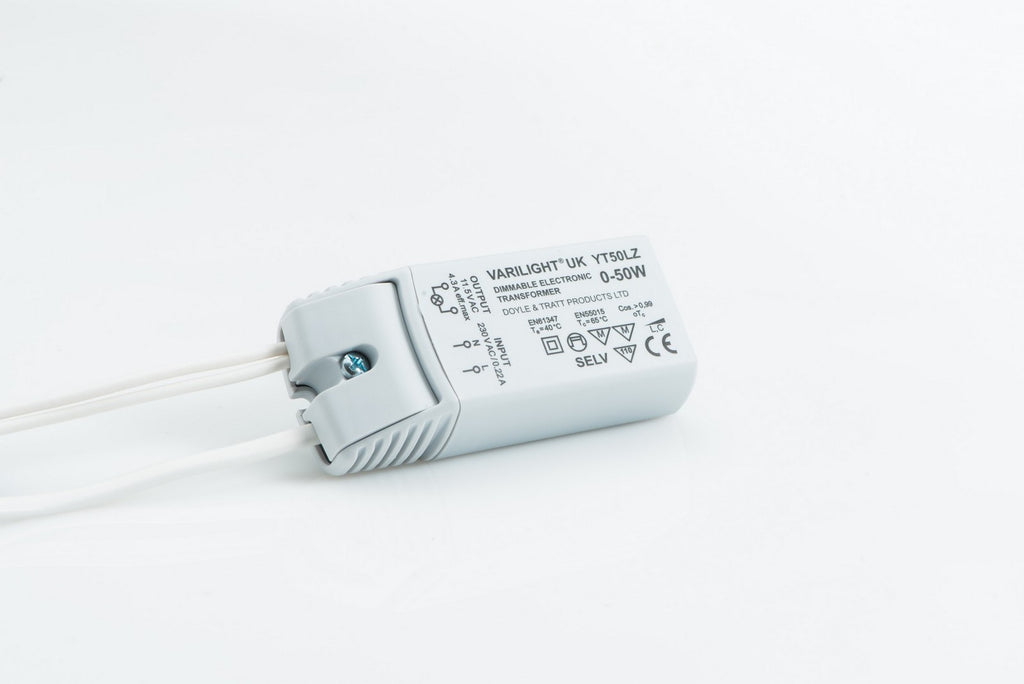

VARILIGHT Dimmable Electronic Transformers
- Soft start gently brings lights to full brightness when you switch on and extend lamp life
- Auto-resetting overload protection
- Auto-resetting over-temperature
- Short circuit protection
- No minimum
- Choose YT50LZ for 12V a.c. LEDs (max. 25W)
- Choose YT40DC12 for 12V d.c. LEDs (max 40W for LED strip, 30W for LED lamps)
| Technical Data | YT50LZ |
YT70LZ |
YT105Z |
YT150Z |
YT210Z |
YT40DC12 |
| Input voltage | 230V a.c. +/-10% 50Hz |
230V a.c. +/-10% 50Hz |
230V a.c. +/-10% 50Hz |
230V a.c. +/-10% 50Hz |
230V a.c. +/-10% 50Hz |
230V a.c. +/-10% 50Hz |
| Nominal input current | 0.22A | 0.32A | 0.46A | 0.65A | 0.93A | 0.2A |
| Output voltage | 11.5V a.c. | 11.5V a.c. |
11.5V a.c. | 11.5V a.c. | 11.5V a.c. | 11.5V d.c. |
| Output power range | 0-50W | 0-70W | 0-105W | 0-150W | 0-210W | 0-40W |
| Nominal output current | 4.3A | 6.0A | 9.1A | 13A | 18.2A | 3.5A |
| Power factor | 0.99 | 0.99 |
0.99 | 0.99 | 0.99 | >0.9 |
| Ambient temperature range | 0-40C | 0-40C | 0-40C | 0-40C | 0-40C | 0-40C |
| IP Protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Weight | 100g | 100g | 125g | 212g | 225g | 180g |
| Input terminals | 2 leads | 2 leads | 2 terminals | 4 terminals | 4 terminals | 2 leads |
| Output terminals | 2 leads | 2 leads | 4 terminals | 6 terminals | 6 terminals | 2 leads |
| Case type (dimensions below) | A | A | B | C | C | D |
| LED Compatible |
