Supplied with 300mm 12v lead.
Dimensions:
Length - 95mm.
Height - 27.5mm.
Width - 41.5mm.

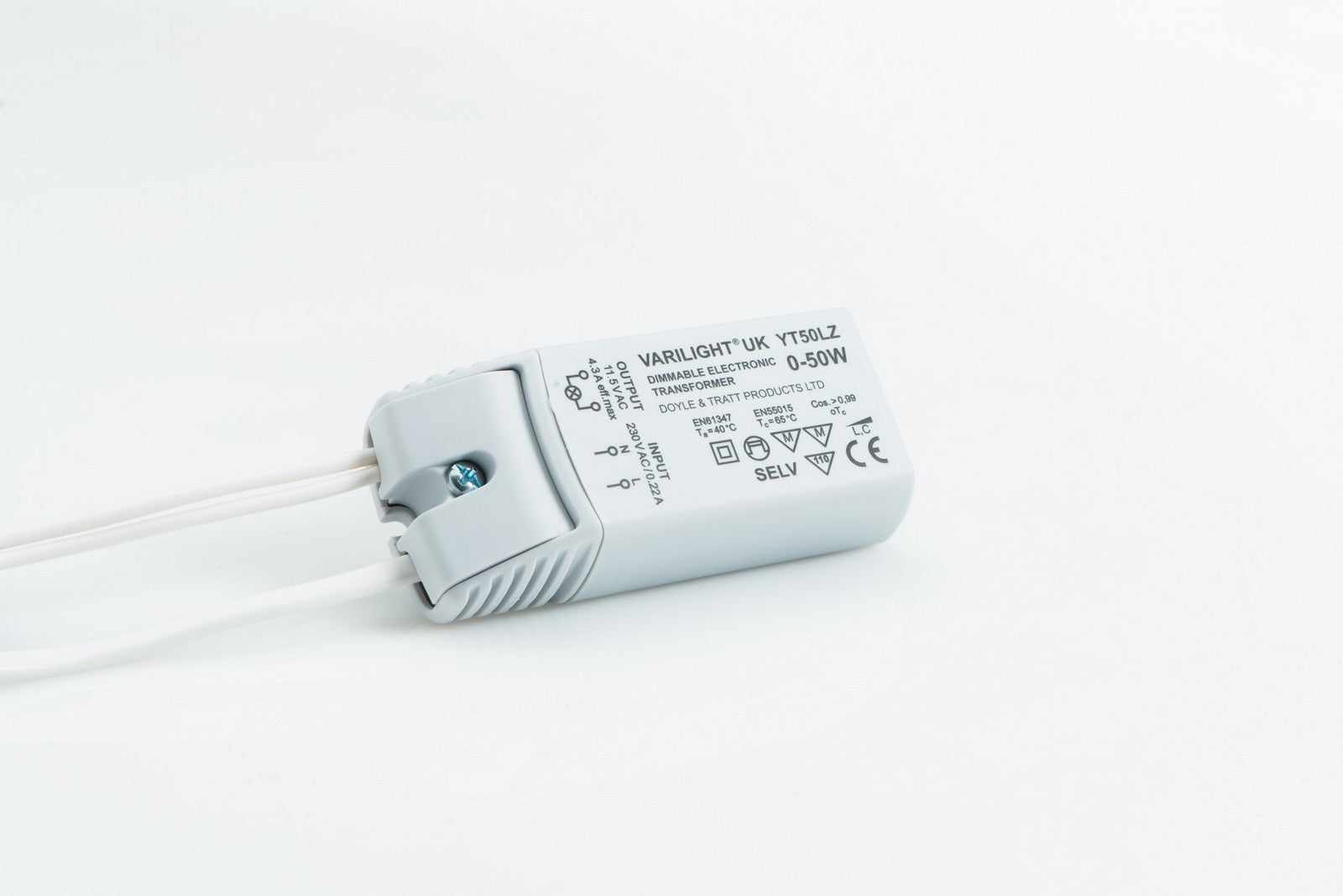

Varilight YT50LZ 12v Dimmable Electronic Driver
Suitible for 25 watt maximum load with LEDs
The Varilight YT50LZ driver is a transformer for converting mains voltage to supply low voltage LEDs. This product can power constant voltage LEDSs with a maximum load of 25 watts. For LED Loads over 25 watts you wil need the Varilight YT210Z.
The YT50LZ Dimmable varilight driver is specifically designed to be used with LED lighting. It is the recommended driver for all Integral-LED 12v bulbs in addition to many other brands. Offering excellent value, the Varilight YT50LZ driver can be used in conjunction with both dimmable and non-dimmable bulbs.
Technical:
Soft start gently brings lights up to full brightness when you switch on an extends lamp life
Auto-resetting overload protection
Auto-resetting over-temperature
Short circuit protection
No minimum rating
Suitable as a dimmable driver for 12V a.c. LEDs
Specification:
- Input Voltage: 230V a.c. +/-10% 50Hz for all Varilight Transformers
- Nominal Input Current: 0.22A
- Output Voltage: 11.5V a.c.
- Output Power Range: 0-50W
- Nominal Output Current: 4.3A
- Power Factor: 0.99
- Ambient Temp Range: 0-40C
- Overvoltage Category: II
- IP Protection: IP20
- Weight: 100g
- Input Terminals: 2 leads
- Output Terminals: 2 leads
