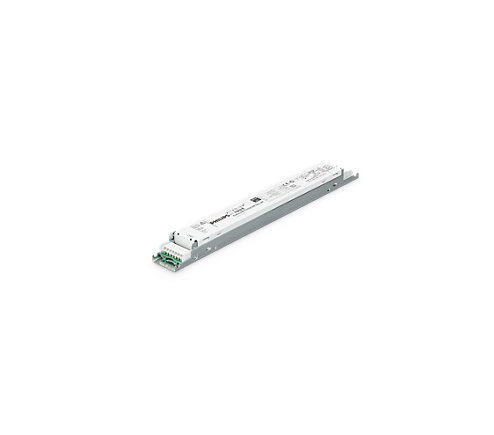

XITANIUM 35W 0.08-0.35A 220V TD21 230V

Specifications

General information

Protection class IEC	Safety class I
Constant light output	Programmable

Nominal Lifetime (Nom)	100000 h
Number of Products on MCB (16A Type-C) (Max)	22 piece/unit

Operating and electrical

Input Frequency	50 to 60 Hz
Mains voltage operation (DC)	168-275 V
Total Harmonic Distortion IEC (Max)	20 %
Output Current Ripple (Max)	4 %
Maximum Efficiency at Full Load	91.2 %
Output Current (Max)	350 mA
Output Current Tolerance (Max)	5 %
Mains voltage performance (DC)	186-250 V
Standby Power Consumption (Max)	0.33 W
Power Factor (Min)	0.9
Open Circuit Voltage (DC) (Max)	250 V
Protection Level Up (L-N) at 5 kA (Max)	1 kV
Protection Level Up (LN-Earth) at 5 kA (Max)	2 kV
Input current (AC)	0.18 mA

Input current (DC)	0.22
Inrush Current Peak (Max)	23.1 A
Output Power (Max)	35 W
Default output current	80 mA
Inrush Current Width to 50% of Peak	221 µs
Power Factor 100% Load (Max)	0.9
Energy Metering	No
Constant Current (CC)	True
Constant Voltage (CV)	False
Diagnostics	True
Output Power (Min)	10 W
Output Current (Min)	80 mA
Output Voltage (Max)	220 V
Output Voltage (Min)	50 V

Wiring

Connector Type Input Terminals	Wago 744
Hot Wiring	no
Connector Type Output Terminals	Wago 744
Output Wire Cross Section (Max)	1.5 mm²
Output Wire Cross Section (Min)	0.5 mm²
Cable Length From Device to Lamp	2 m

Input Wire Gauge	16-20
Input wire strip length	8 mm to 9 mm
Output wire strip length	8 mm to 9 mm
Input Wire Cross Section (Max)	1.5 mm²
Input Wire Cross Section (Min)	0.5 mm²

System characteristics

Central DC Operation

Yes

YellowDot ready

No

Temperature

T-Ambient (Max)	50 °C
T-Ambient (Min)	-25 °C
T-Case Lifetime (Max)	65 °C

T-Case Maximum (Max)	75 °C
Module Temperature Protection	no
Maximum case temperature (in case of failure)	110 °C

Controls and dimming

Dimmable	DALI
Dimming Range	100-1 %

D4i compliant	No
DynaDimmer	No

Mechanical and housing

Product Length	280 mm
Housing	Office 280x30x21 7p4p
Housing Dimensions	280 x 30 x 21

Overall length	280 mm
Overall width	30 mm
Overall height	21 mm

Approval and application

IP Classification	IP 20  [ Ingress Protection 20]
Isolation Classification	No
Short Circuit Protection	Protected
Over Power Protection	Protected
Open Circuit Protection	Protected

Approval Marks	CCC certificate CE marking ENEC certificate RCM compliance REACH compliance RoHS compliance
Corridor Mode	True
Output Current Set Options	LEDset,Programmable

Product data

Full product code	871869965373600
Order product name	XITANIUM 35W 0.08-0.35A 220V TD21 230V
EAN/UPC - Product	8718699653736
Order code	929001681706

Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	24
Material Nr. (12NC)	929001681706
Net Weight (Piece)	0.200 kg
