| 9006032* |

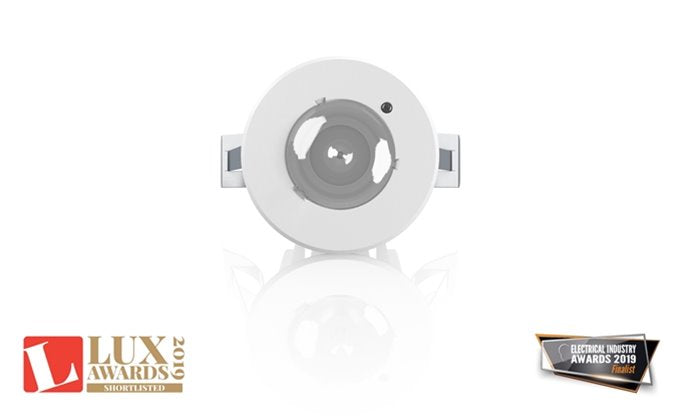

XYLUX LR4 in White |
| 9006043* |
XYLUX LR4 in Black |
| 9006045 |
XYLUX LR4 in White with Emphasis Point lens |
| 9006048 |
XYLUX LR4 in Black with Emphasis Point lens |
| 9006051 |
XYLUX LR4 in White with Open Area lens |
| 9006054 |
XYLUX LR4 in Black with Open Area lens |
| 9006057 |
XYLUX LR4 in White with Escape Route lens |
| 9006060 |
XYLUX LR4 in Black with Escape Route lens |
| 9006063 |
XYLUX LR4 in White with IP65 Emphasis Point lens |
| 9006066 |
XYLUX LR4 in Black with IP65 Emphasis Point lens |
| 9005892 |
XYLUX LR4 in White with IP65 Open Area lens |
| 9006072 |
XYLUX LR4 in Black with IP65 Open Area lens |
| 9005894 |
XYLUX LR4 in White with IP65 Escape Route lens |
| 9005956 |
XYLUX LR4 in Black with IP65 Escape Route lens |
DALI
| Order Code |
Descriptions |
| 9006033* |
XYLUX LR4 DALI in White |
| 9006044* |
XYLUX LR4 DALI in Black |
| 9006046 |
XYLUX LR4 DALI in White with Emphasis Point lens |
| 9006049 |
XYLUX LR4 DALI in Black with Emphasis Point lens |
| 9006052 |
XYLUX LR4 DALI in White with Open Area lens |
| 9006055 |
XYLUX LR4 DALI in Black with Open Area lens |
| 9006058 |
XYLUX LR4 DALI in White with Escape Route lens |
| 9006061 |
XYLUX LR4 DALI in Black with Escape Route lens |
| 9006064 |
XYLUX LR4 DALI in White with IP65 Emphasis Point lens |
| 9006067 |
XYLUX LR4 DALI in Black with IP65 Emphasis Point lens |
| 9005893 |
XYLUX LR4 DALI in White with IP65 Open Area lens |
| 9006073 |
XYLUX LR4 DALI in Black with IP65 Open Area lens |
| 9005895 |
XYLUX LR4 DALI in White with IP65 Escape Route lens |
| 9006079 |
XYLUX LR4 DALI in Black with IP65 Escape Route lens |
* Supplied with all three lenses; Open Area, Escape Route and Emphasis Point.
Central Battery
| Order Code |
Descriptions |
| 9006047 |
XYLUX LR4 Central Battery in White with Emphasis Point lens |
| 9006050 |
XYLUX LR4 Central Battery in Black with Emphasis Point lens |
| 9006053 |
XYLUX LR4 Central Battery in White with Open Area lens |
| 9006056 |
XYLUX LR4 Central Battery in Black with Open Area lens |
| 9006059 |
XYLUX LR4 Central Battery in White with Escape Route lens |
| 9006062 |
XYLUX LR4 Central Battery in Black with Escape Route lens |
| 9006065 |
XYLUX LR4 Central Battery in White with IP65 Emphasis Point lens |
| 9006068 |
XYLUX LR4 Central Battery in Black with IP65 Emphasis Point lens |
| 9006071 |
XYLUX LR4 Central Battery in White with IP65 Open Area lens |
| 9006074 |
XXYLUX LR4 Central Battery in Black with IP65 Open Area lens |
| 9006077 |
XYLUX LR4 Central Battery in White with IP65 Escape Route lens |
| 9006080 |
XYLUX LR4 Central Battery in Black with IP65 Escape Route lens |
Specifications
Supply voltage220 - 240 V
Supply frequency50/60 Hz
Supply current (max)38 mA
Power factor0.33
Total circuit power (max)1.7 W
Total circuit power (nominal)0.5 W
Battery charge current100 mA
Ambient temperature (ta)0 to +35°C
Protection classClass II
Conductor size0.5 - 1.5mm²
Emergency duration3 hours
Recharge period24 hours
Weight of control gear250 g
Lumen output180 lm
IP ratingIP30
CCT>5700K
Weight of lamphead80 g
Technology Options
Standard
For applications where self-testing is not required or suitable, the non-AutoTest® option provides the same quality and performance expected of Mackwell products, without the AutoTest® feature.
DALI AutoTest®
Provides benefits by enabling testing and monitoring of an emergency lighting system either on-site or via an internet connection. DALI AutoTest® is ideal for monitoring larger buildings and multiple sites. The product defaults to standalone AutoTest when not connected to a DALI network.
Central Battery
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-off input to inhibit the LED driver output when a mains supply is connected.
Relevant Standards
- EN 60598-2-22
- EN 61347-2-7
- EN 61347-2-13
- BS 5266-1:2005
- EN 62034
- EN 62386
- EN 62031
- EN 62471
